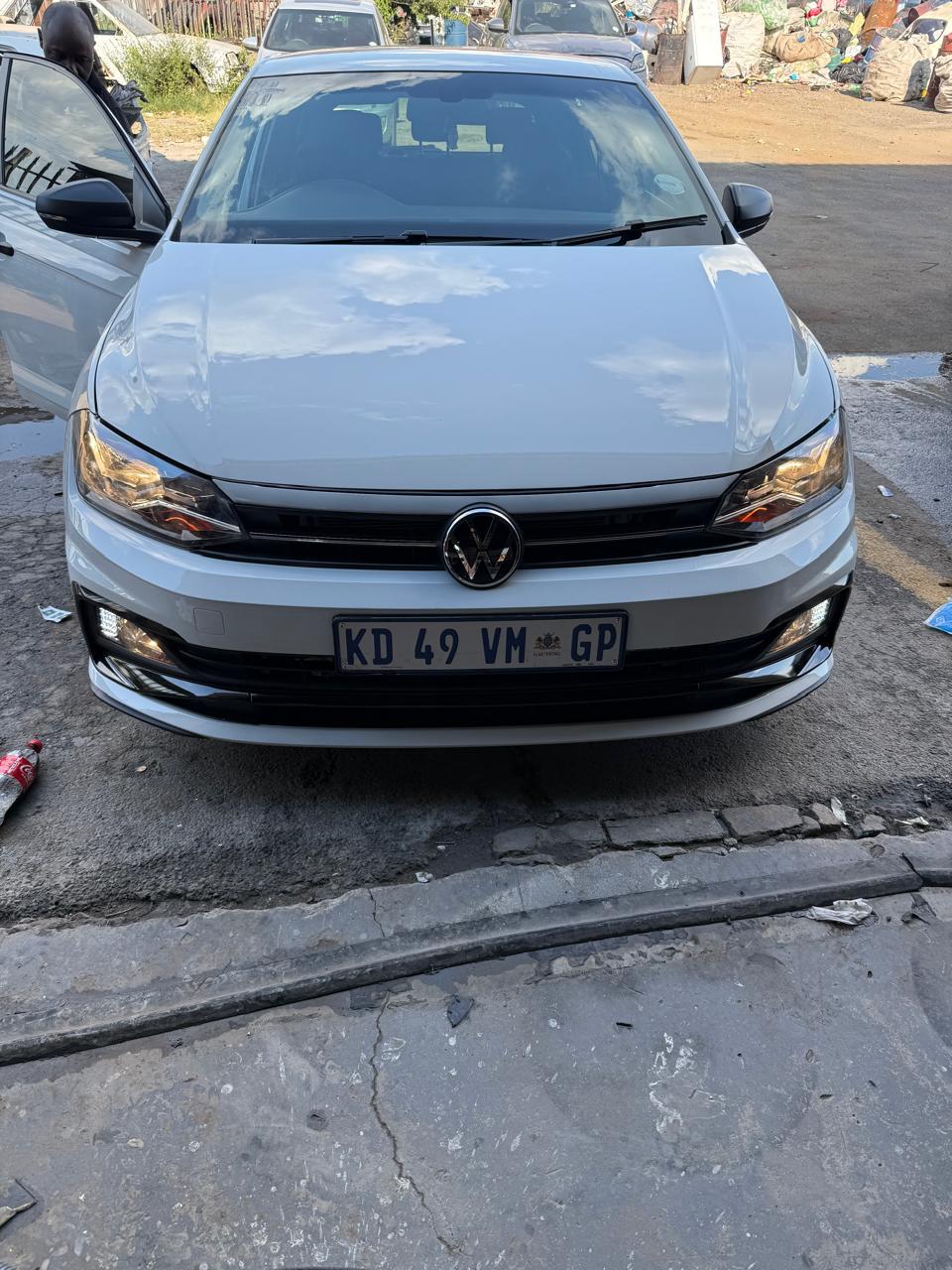

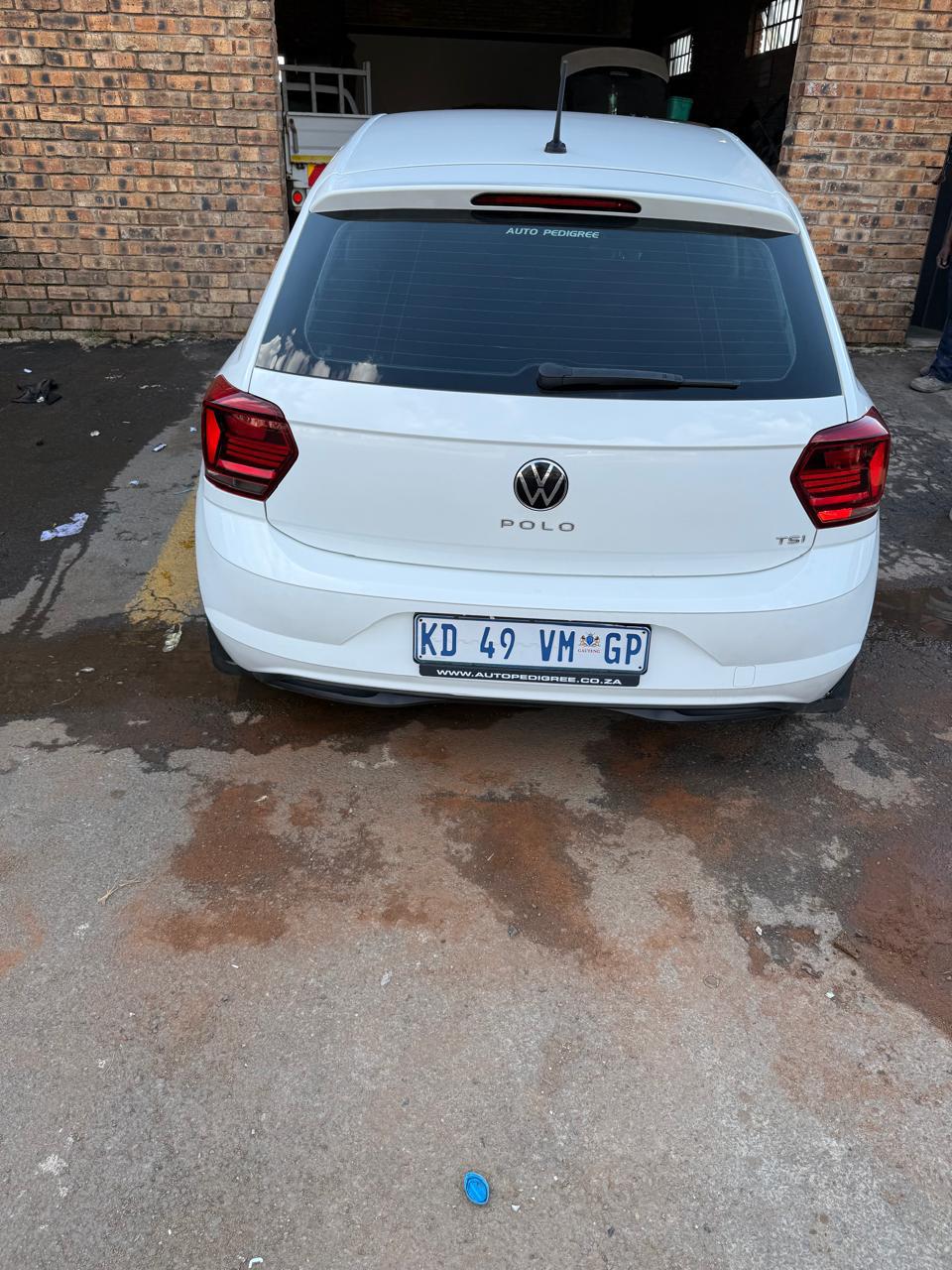

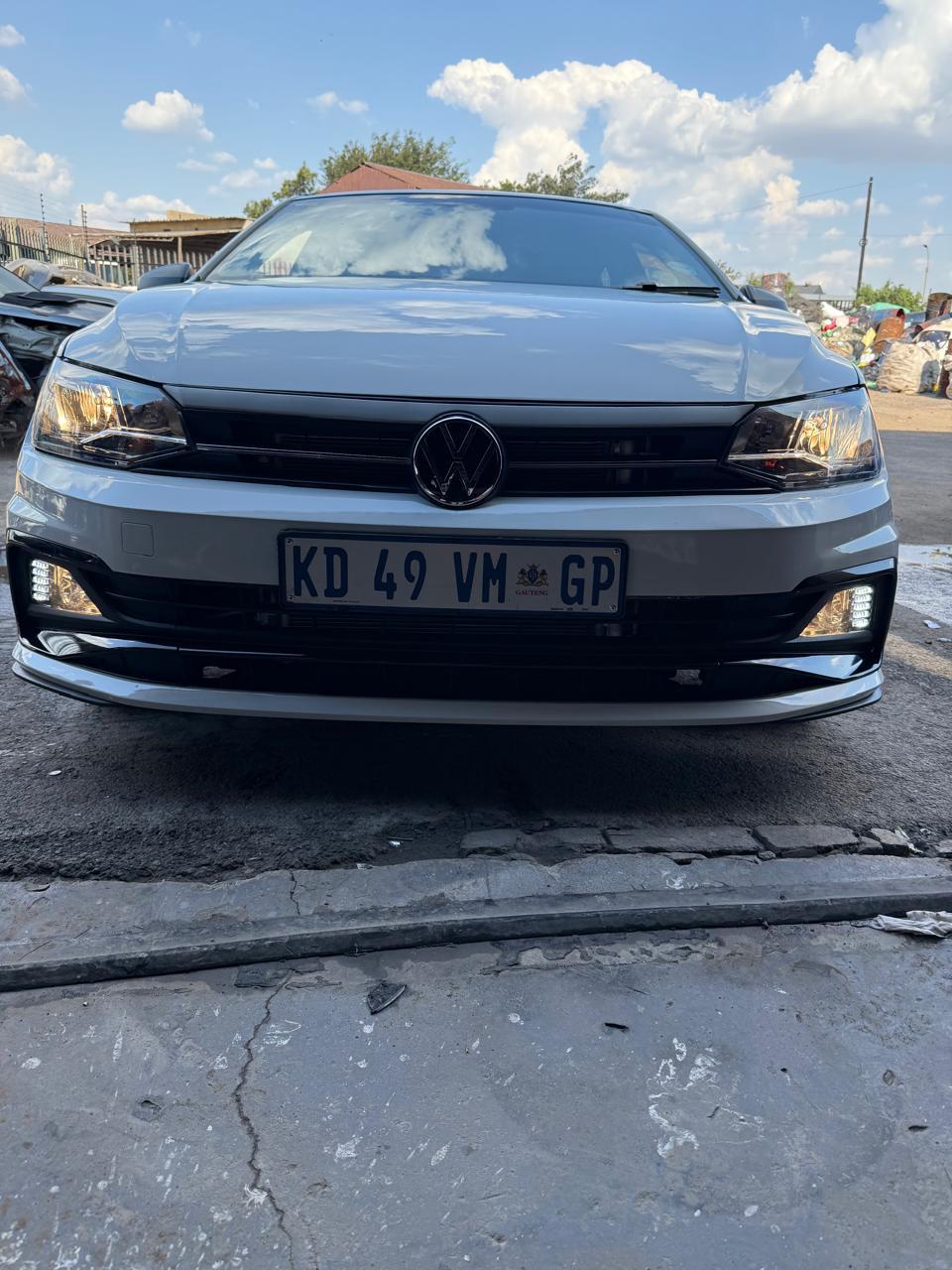

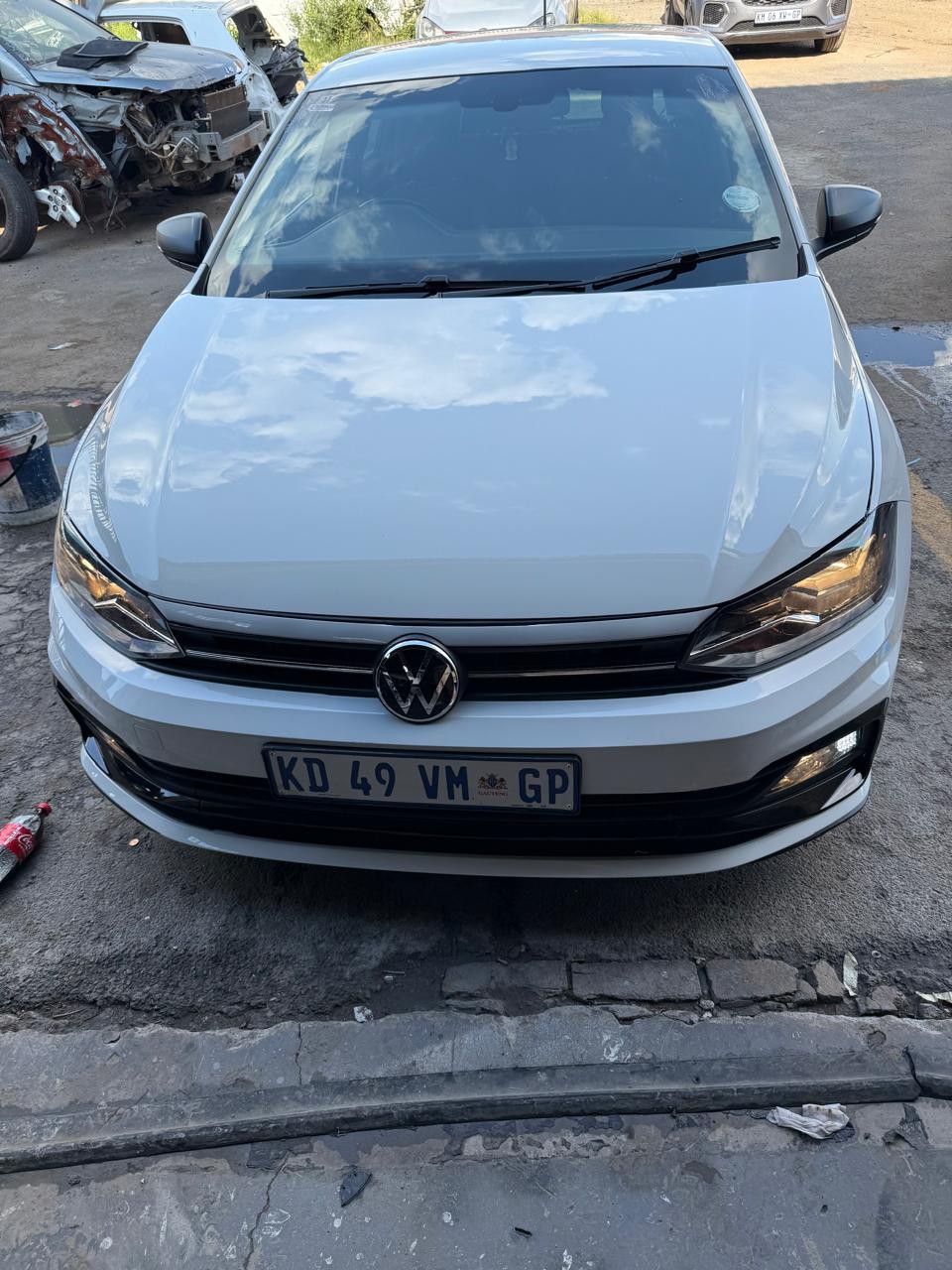

Repair Progress - KD 49 VM GP (Repairs: JobCard Re-Openned)


✅ Work Completed

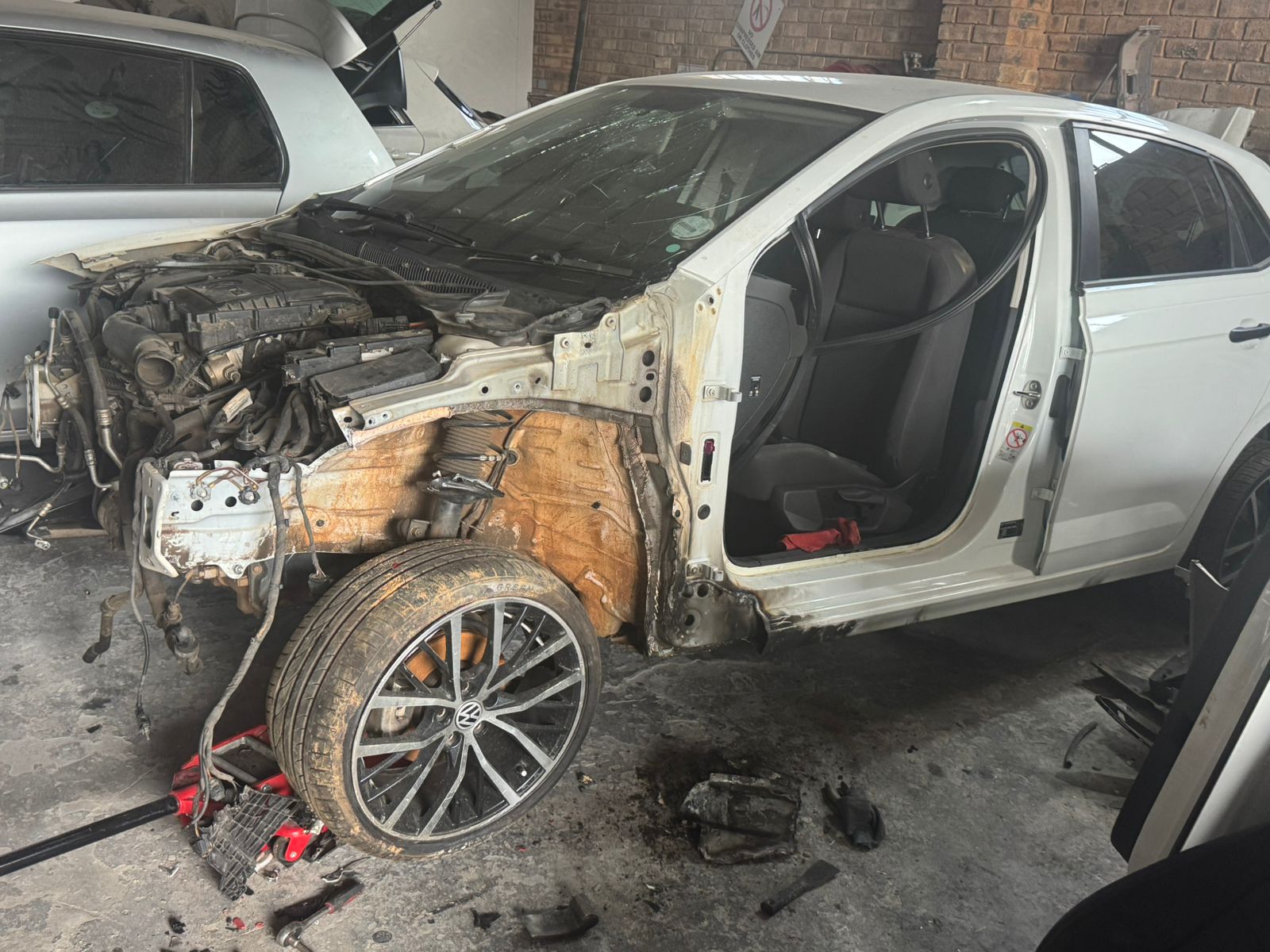

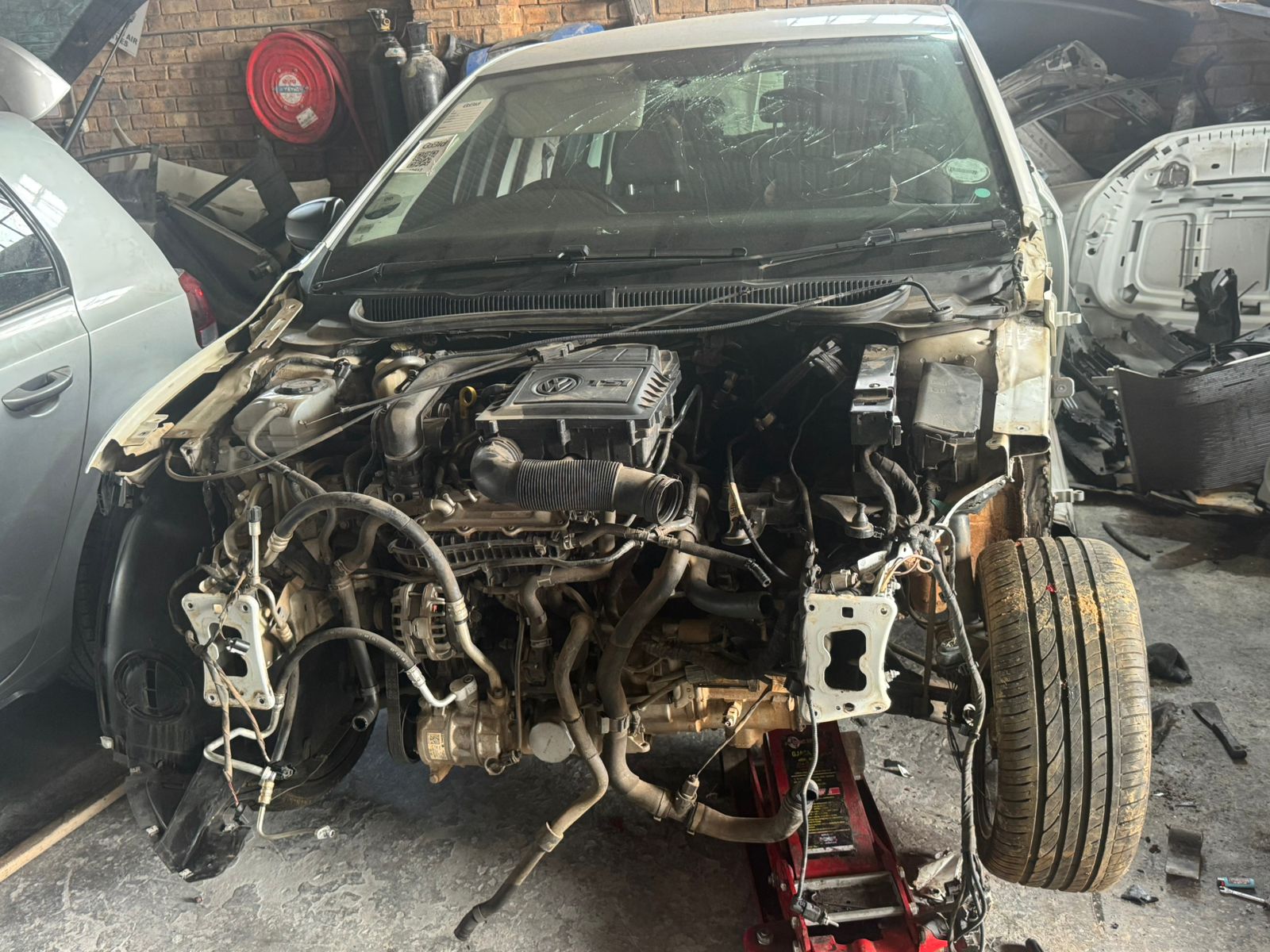

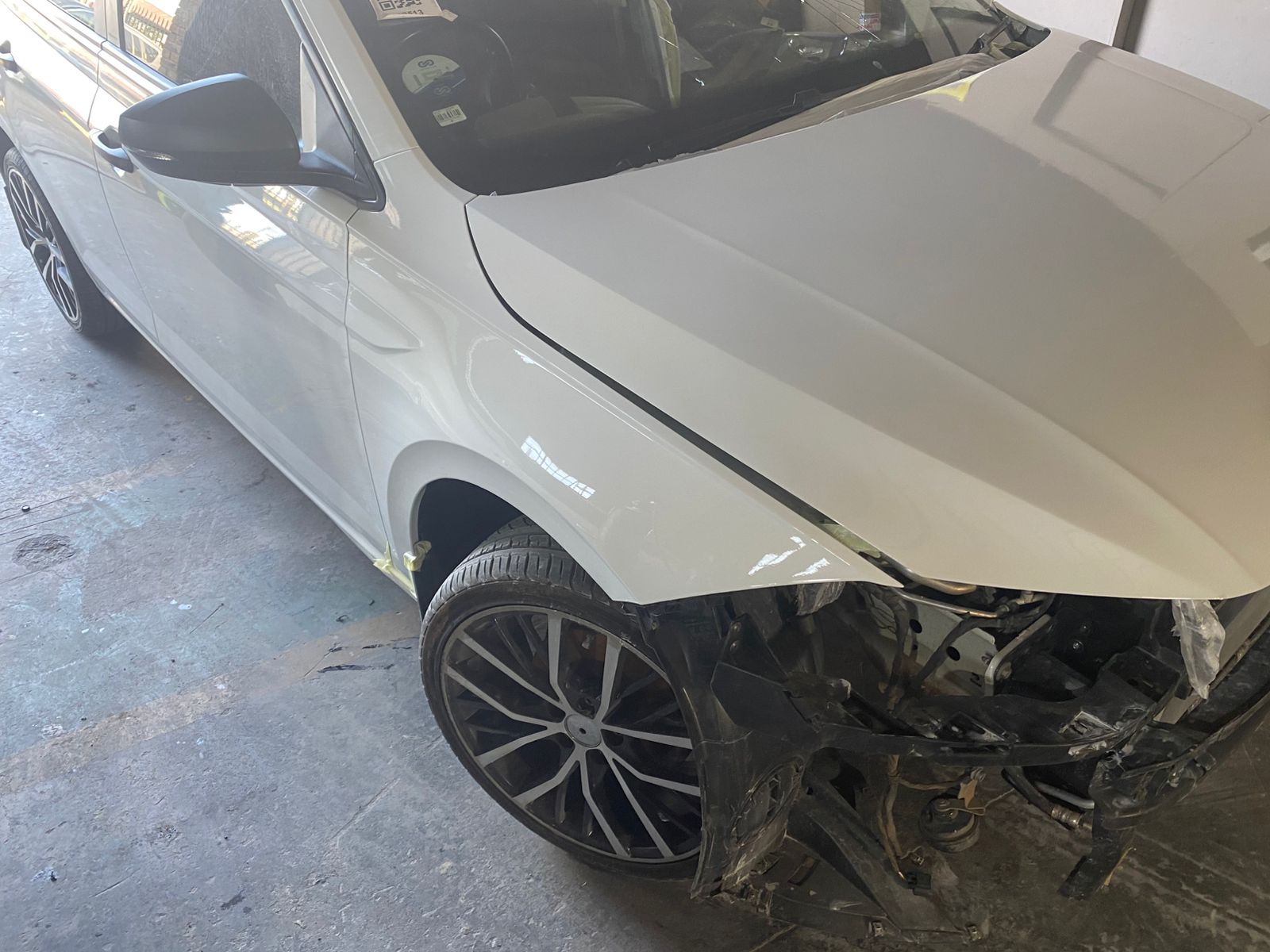

  • Stripping AirBag, Suspension and Radiators

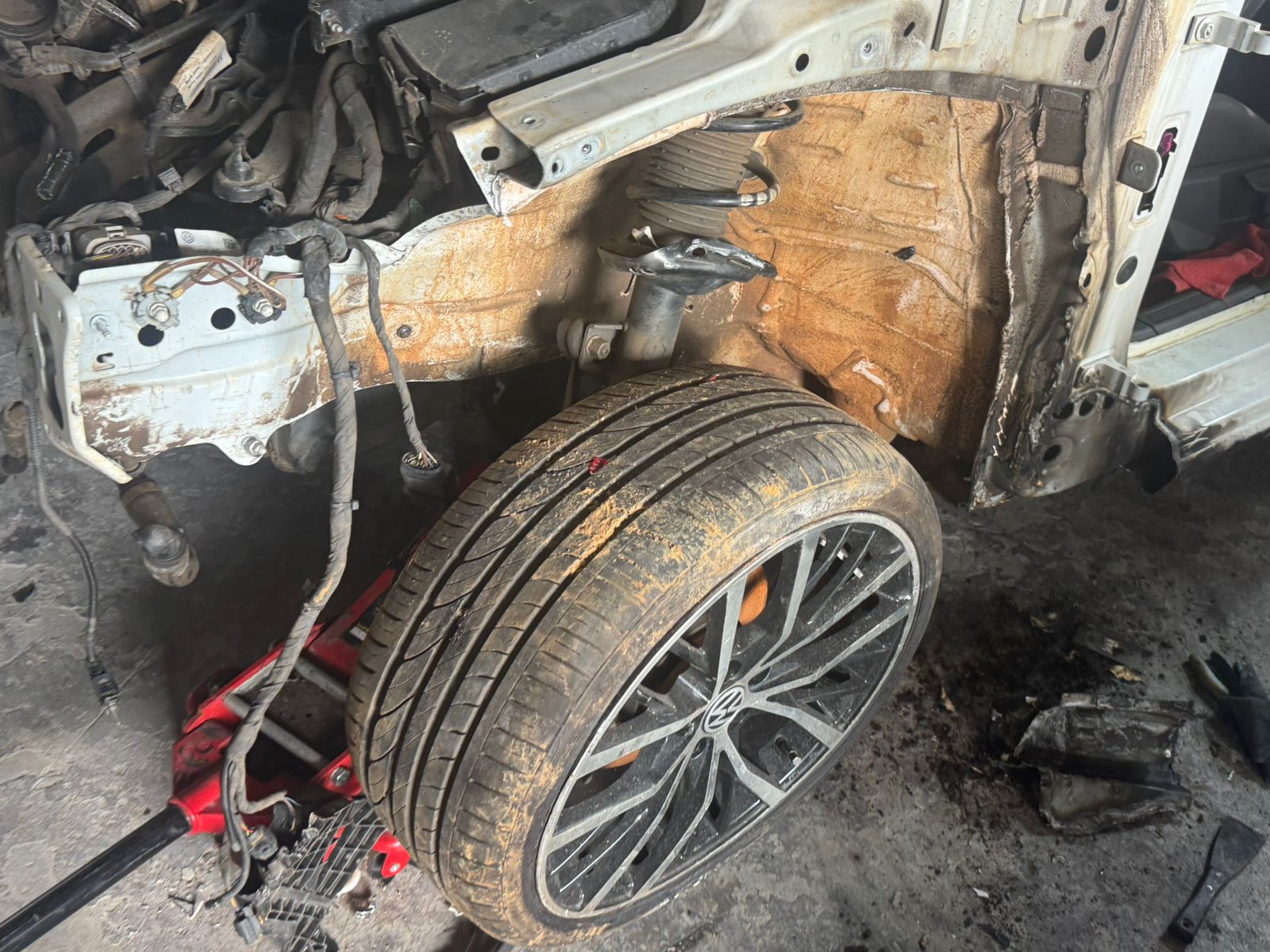

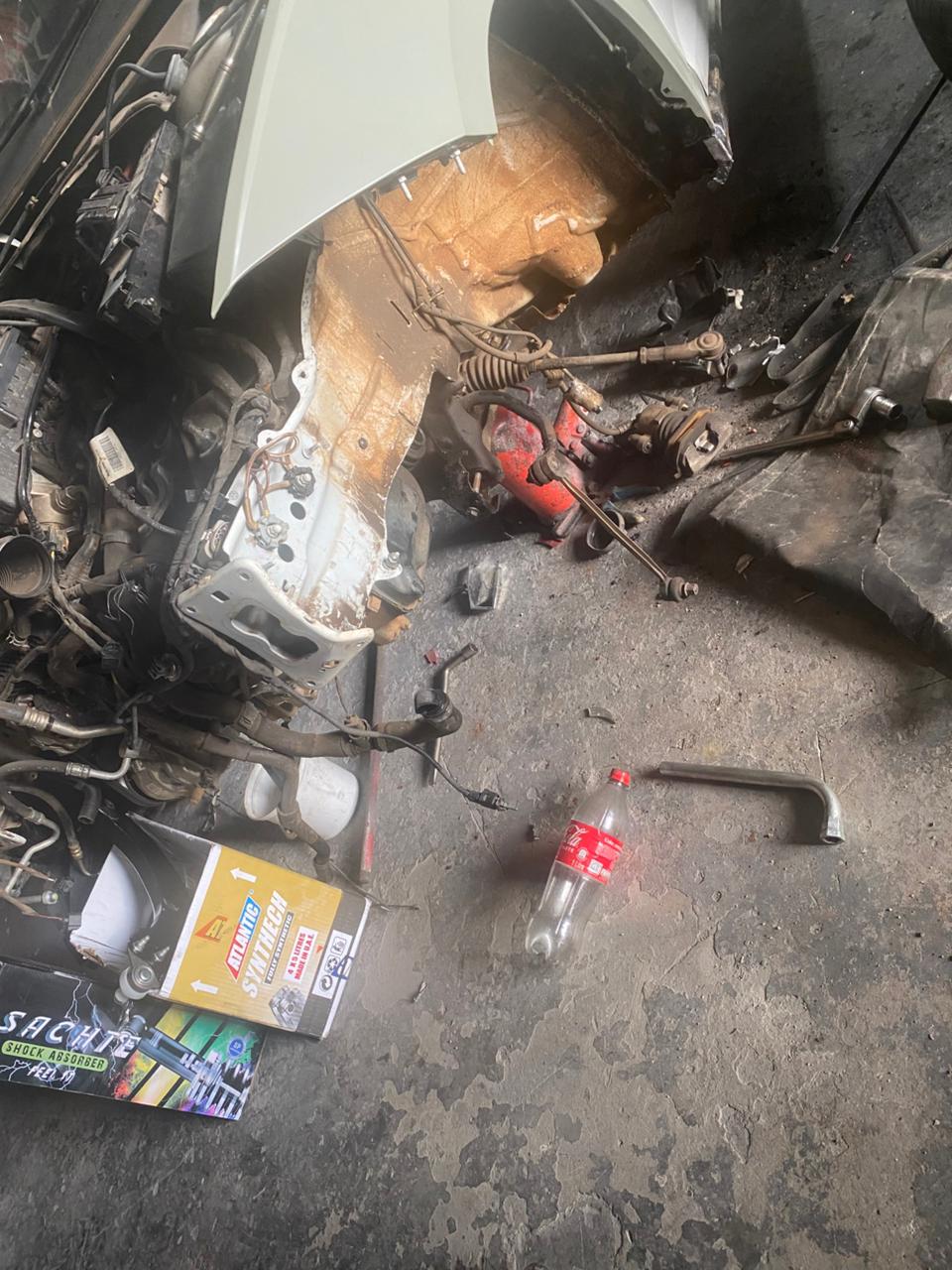

  • Left Front Inner Fender Straightening

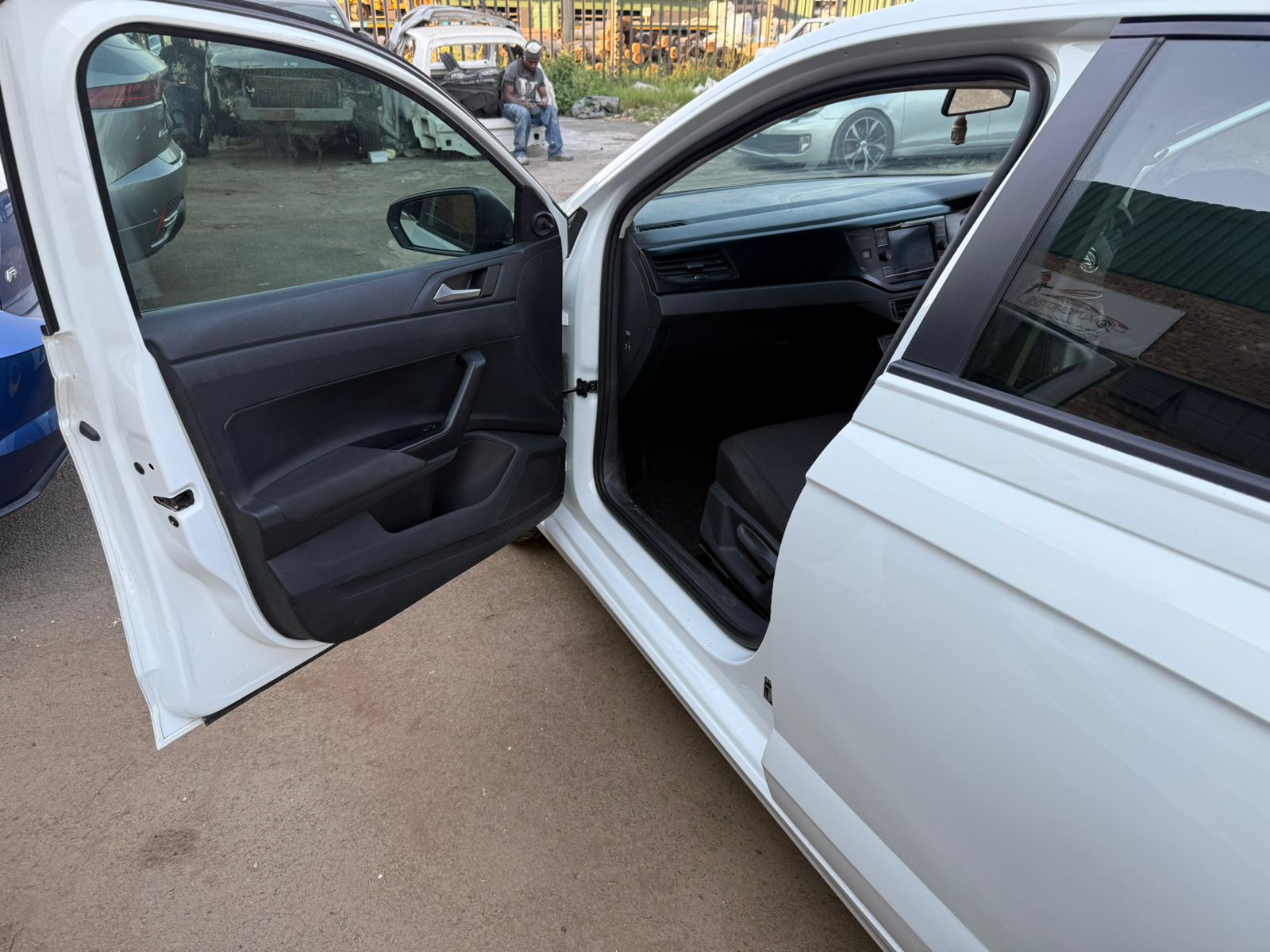

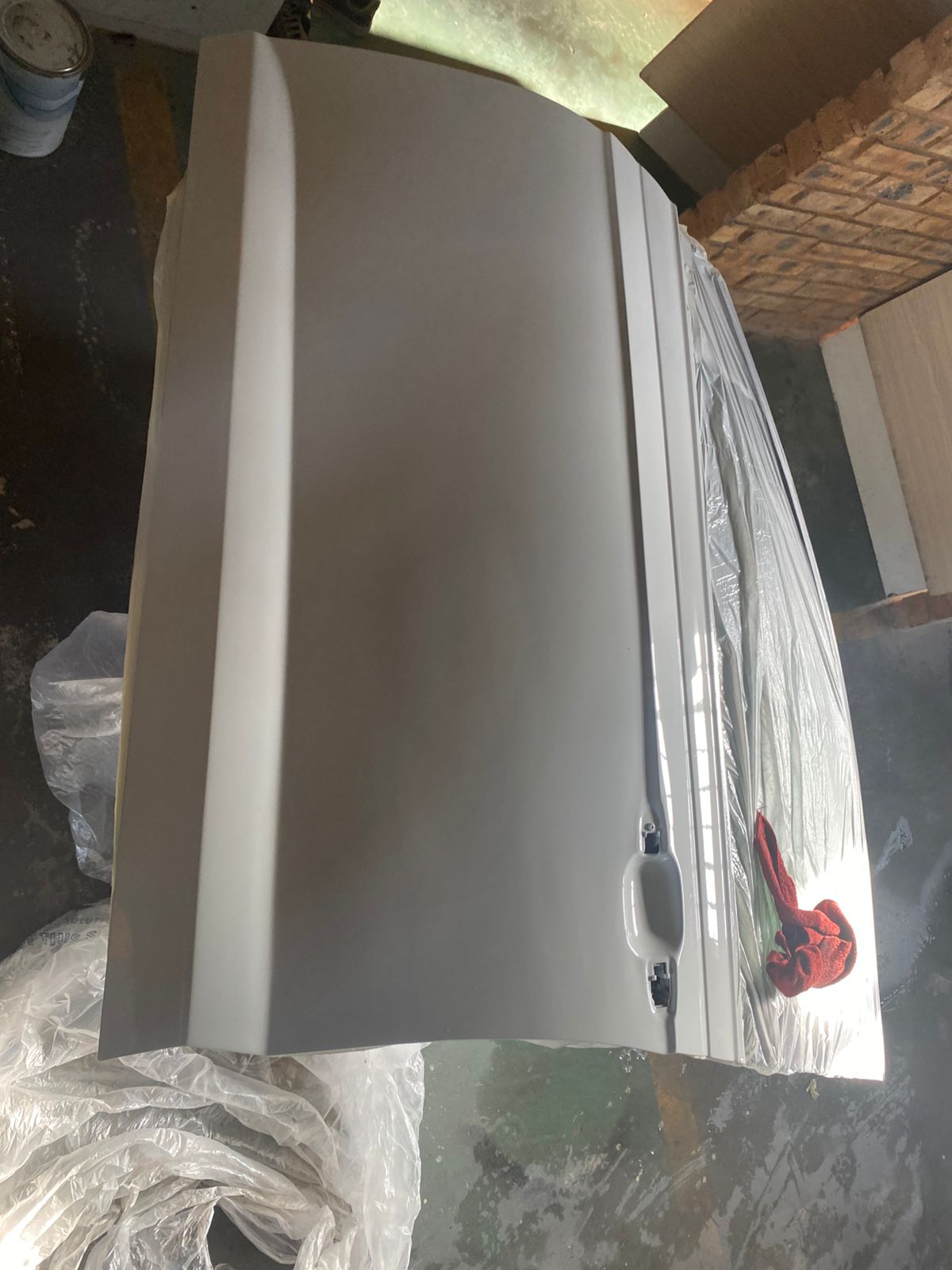

  • Left Front Door Panelbeating
  • Left Front Door Primer
  • Left Side skirt Panelbeating
  • Left Side skirt Primer

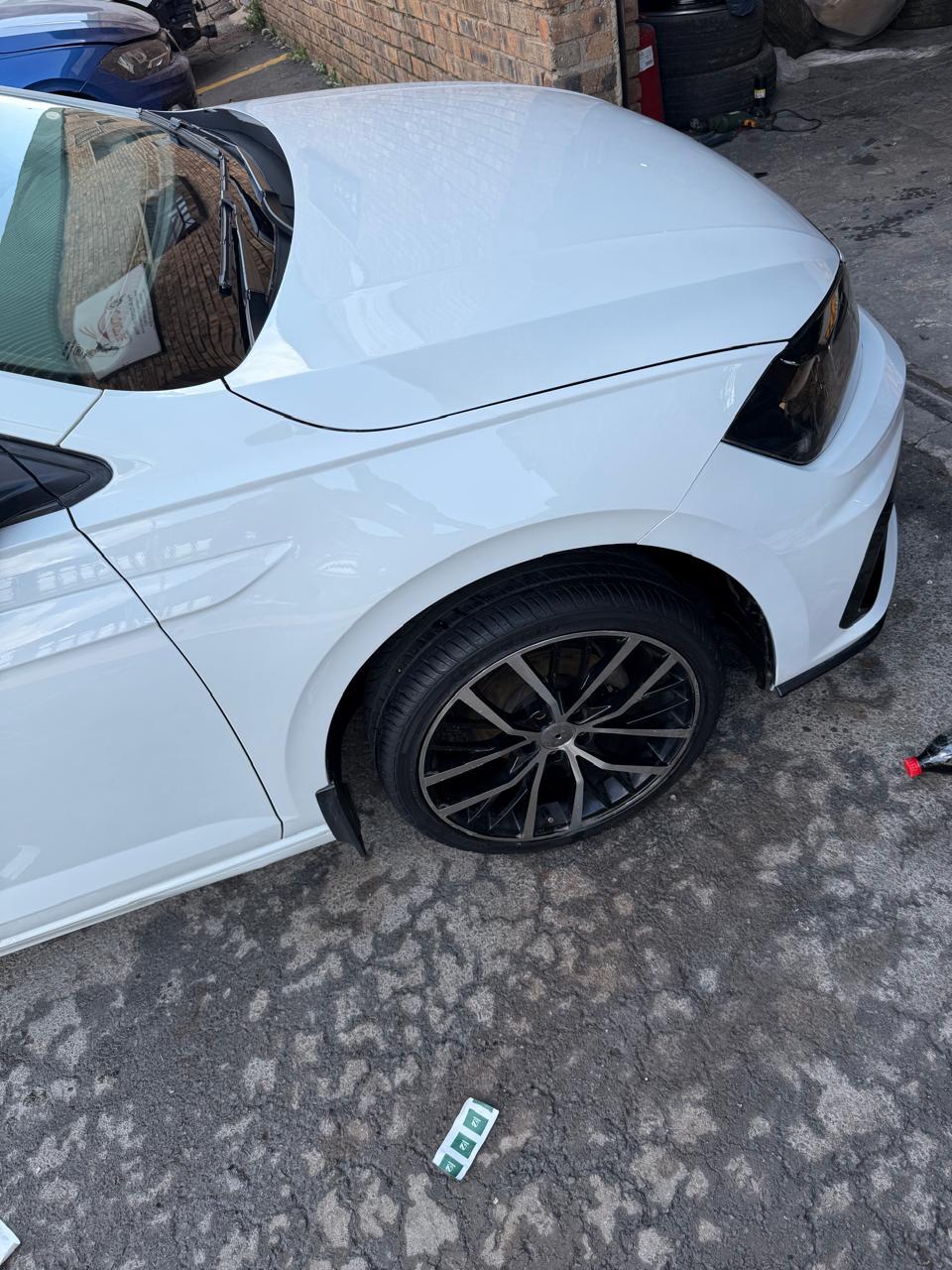

  • Left Front Fender Primer

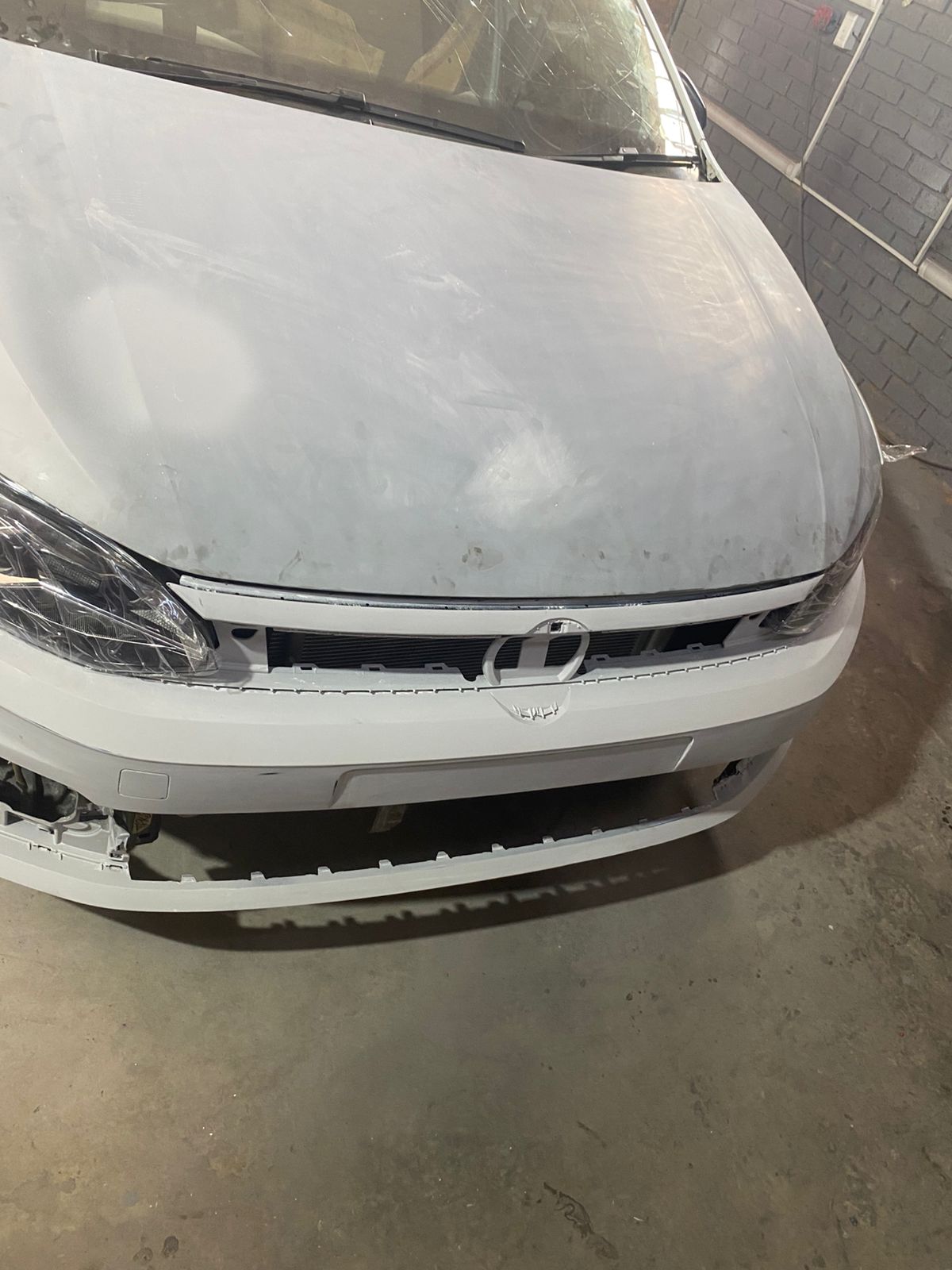

  • Bonet Primer

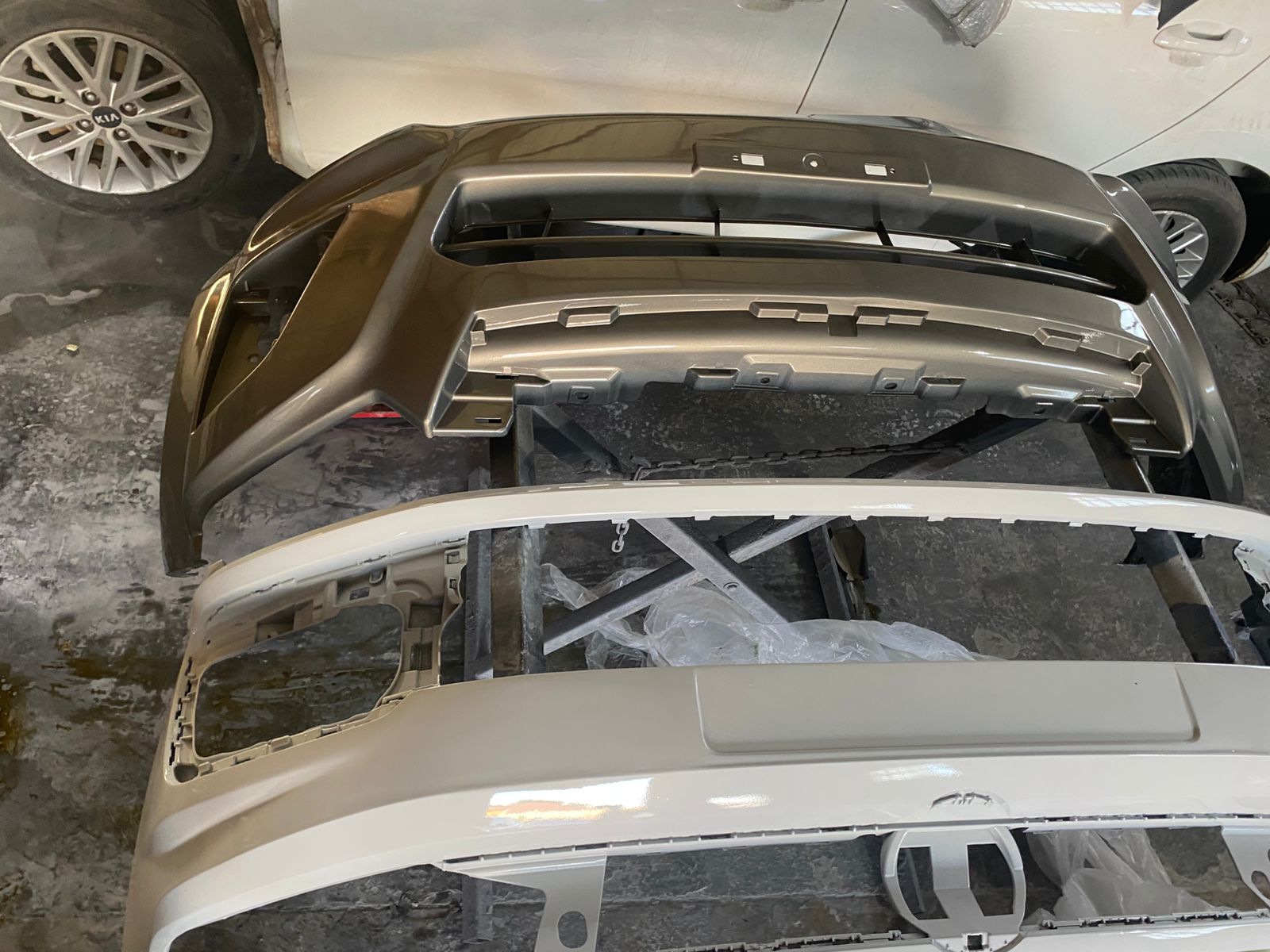

  • Front Bumper Primer

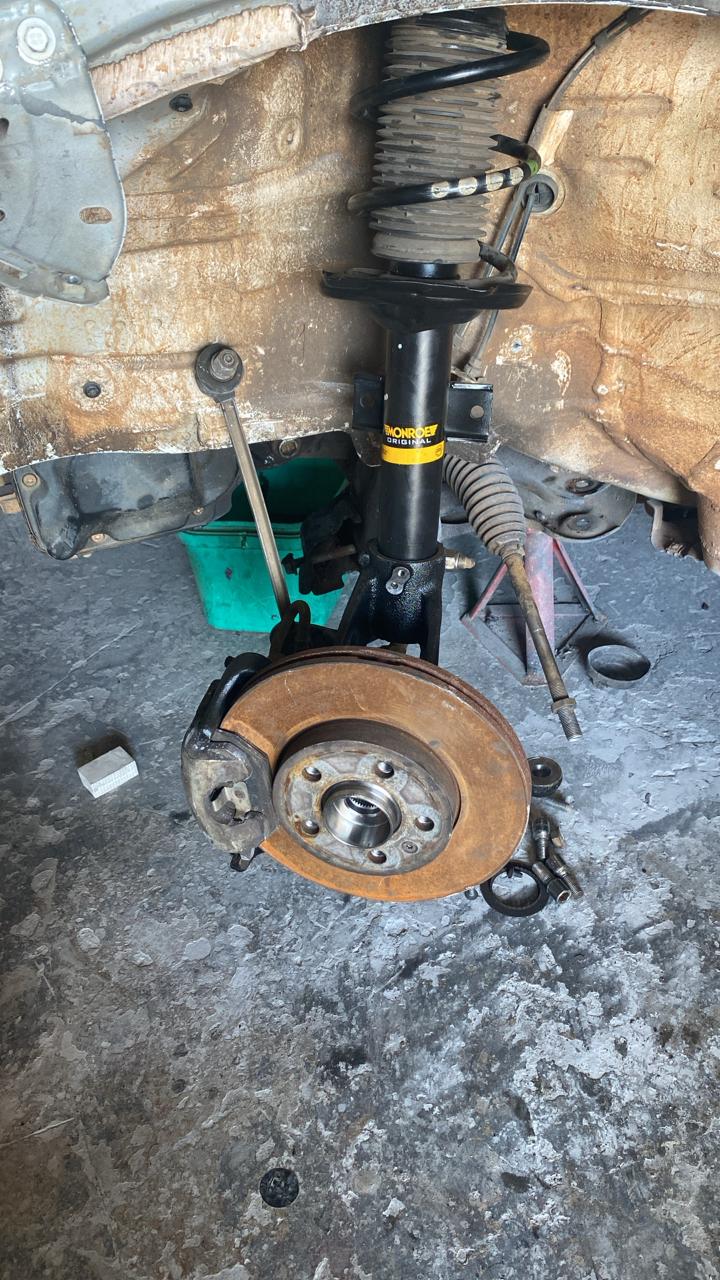

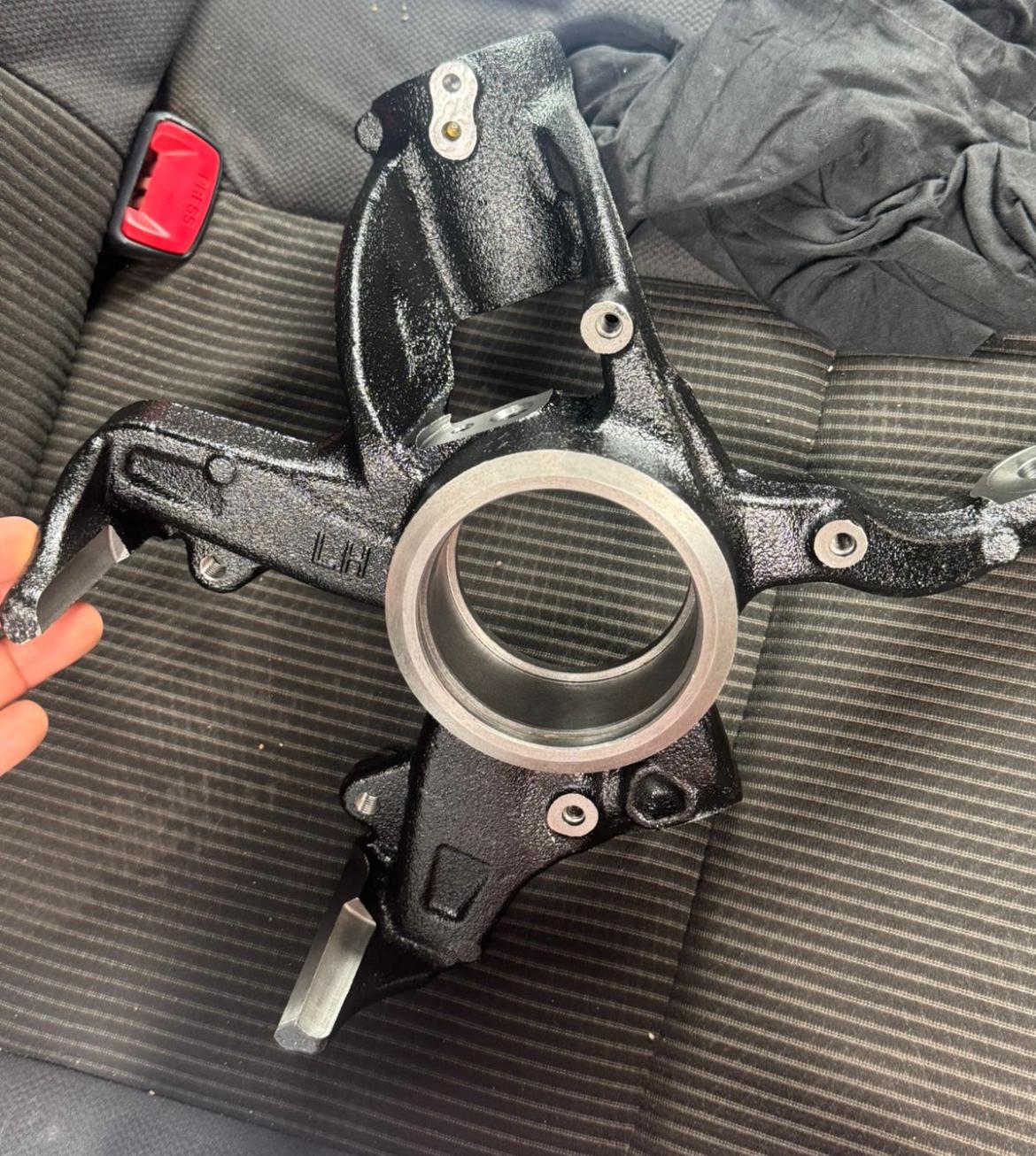

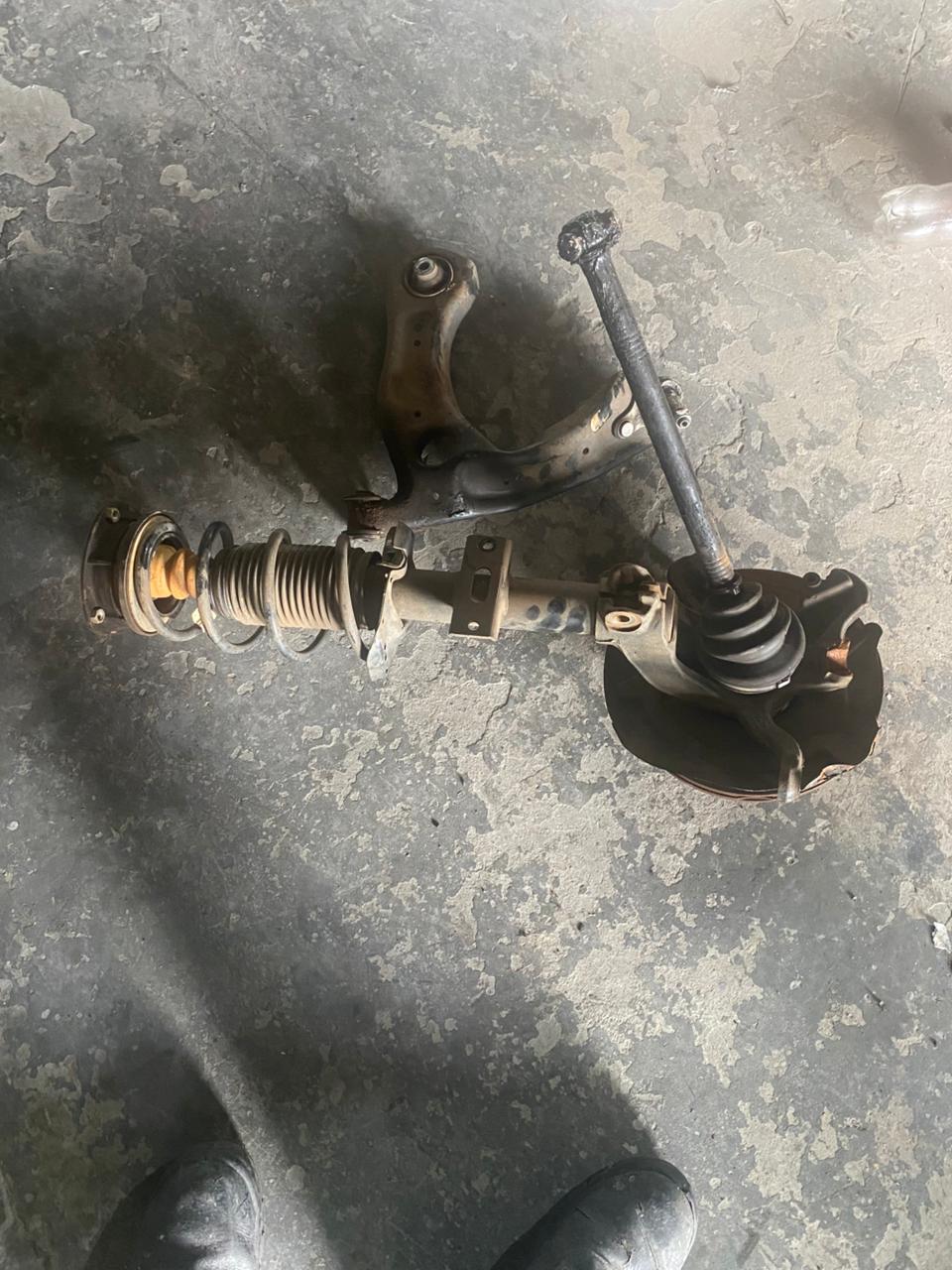

  • Assembling Left Front Suspension

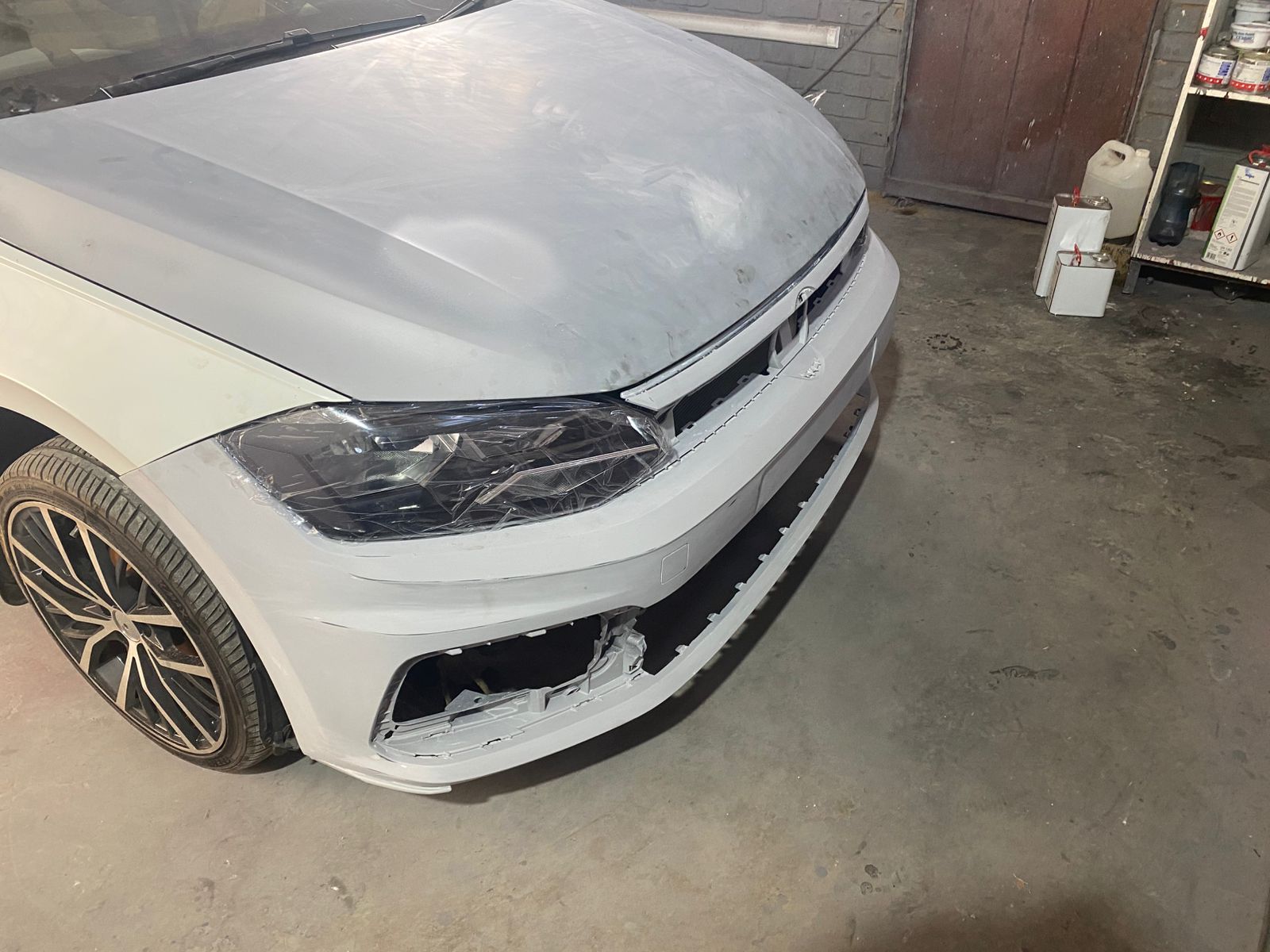

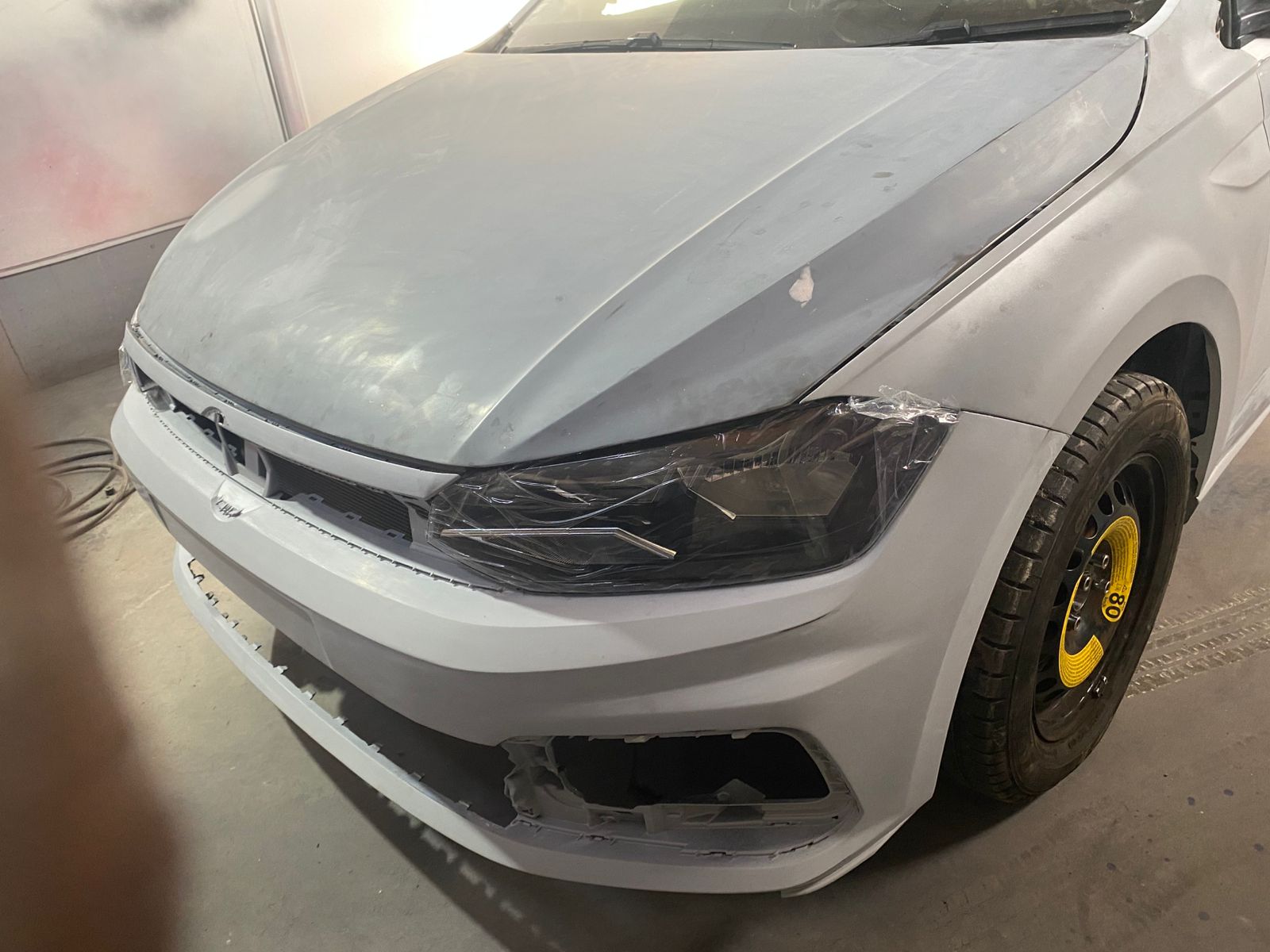

  • Flatting Primer

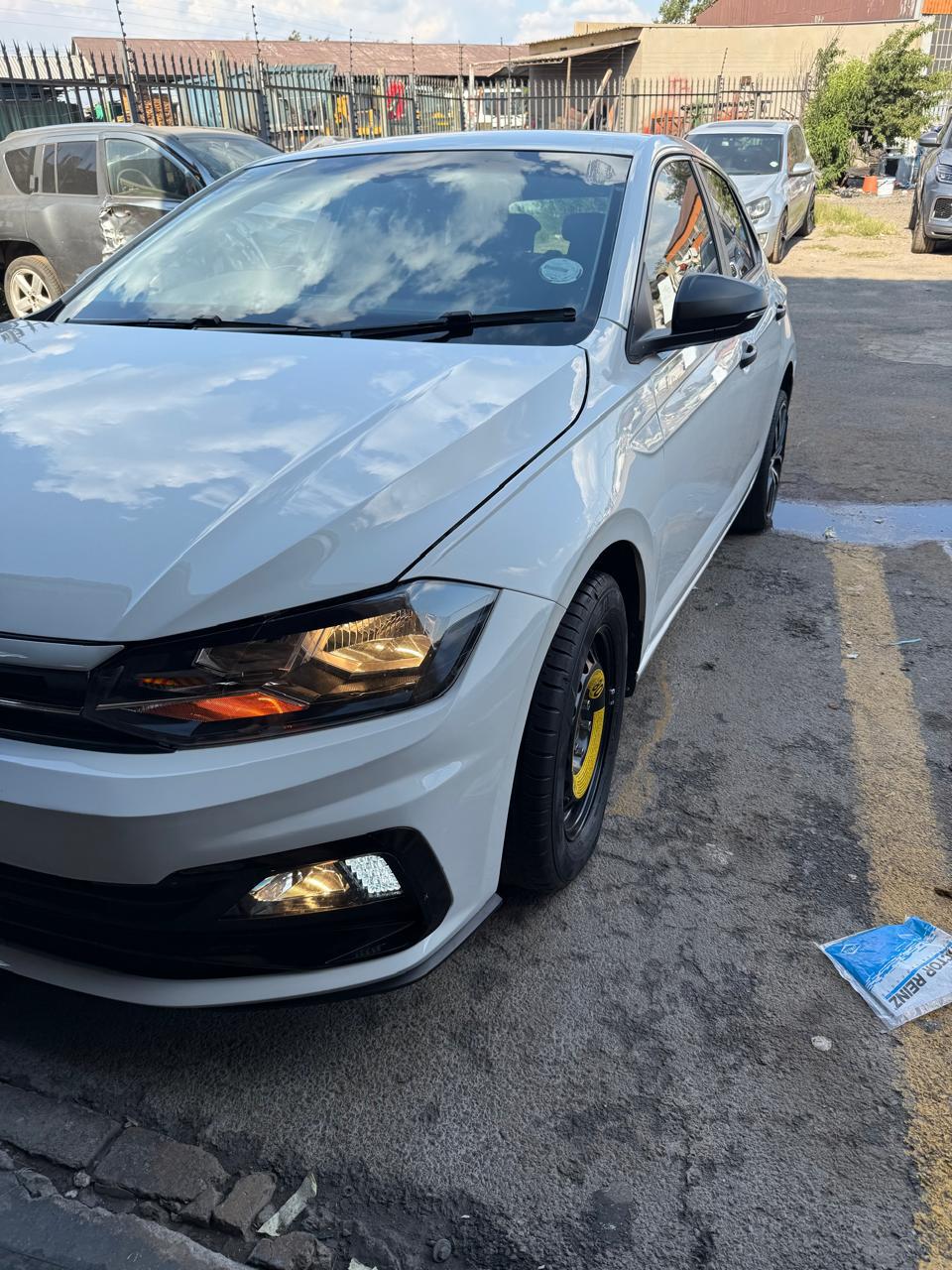

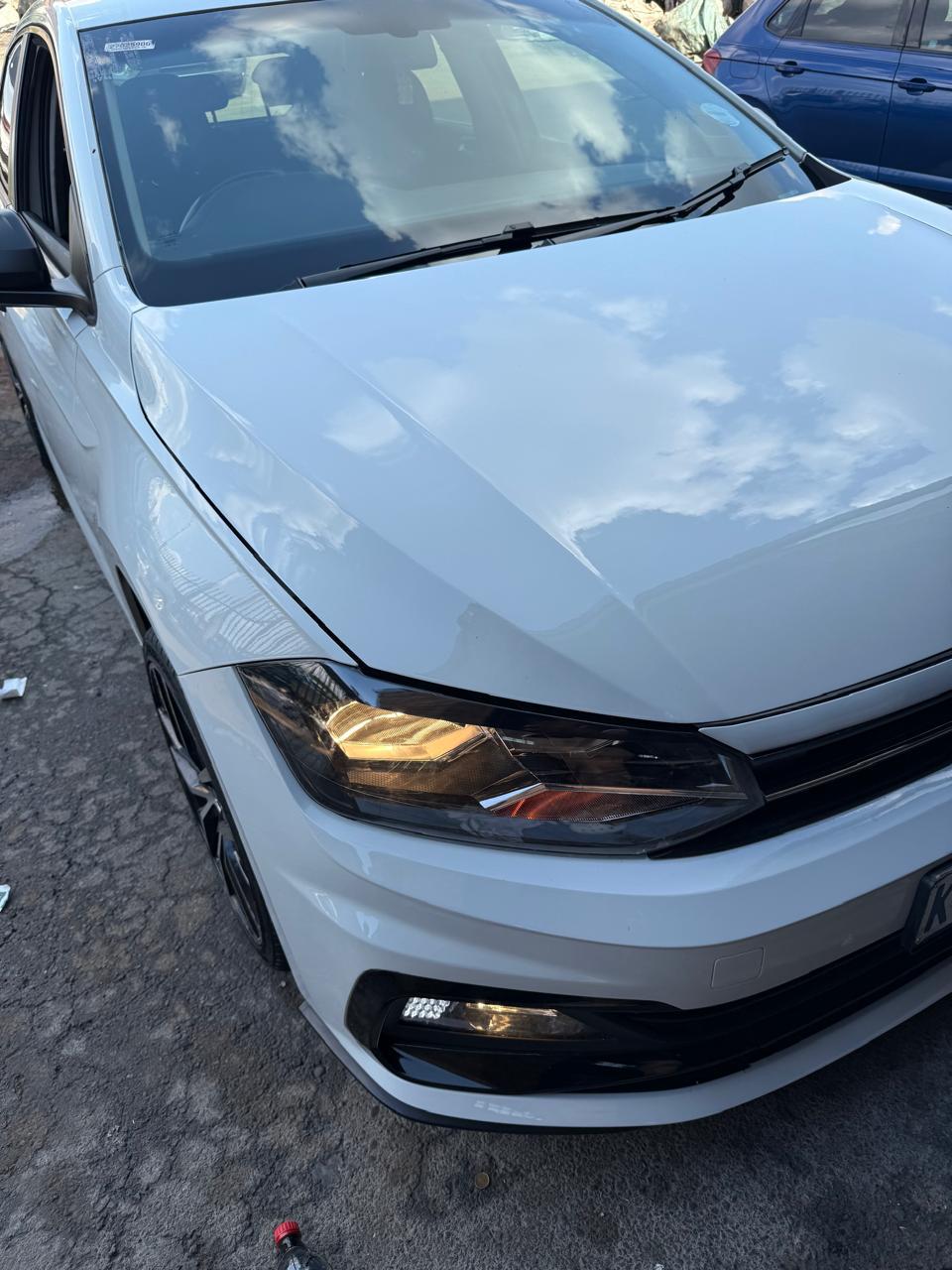

  • HeadLight Left and Right
  • HeadLight Brackets Left and Right
  • Main Radiator - Received

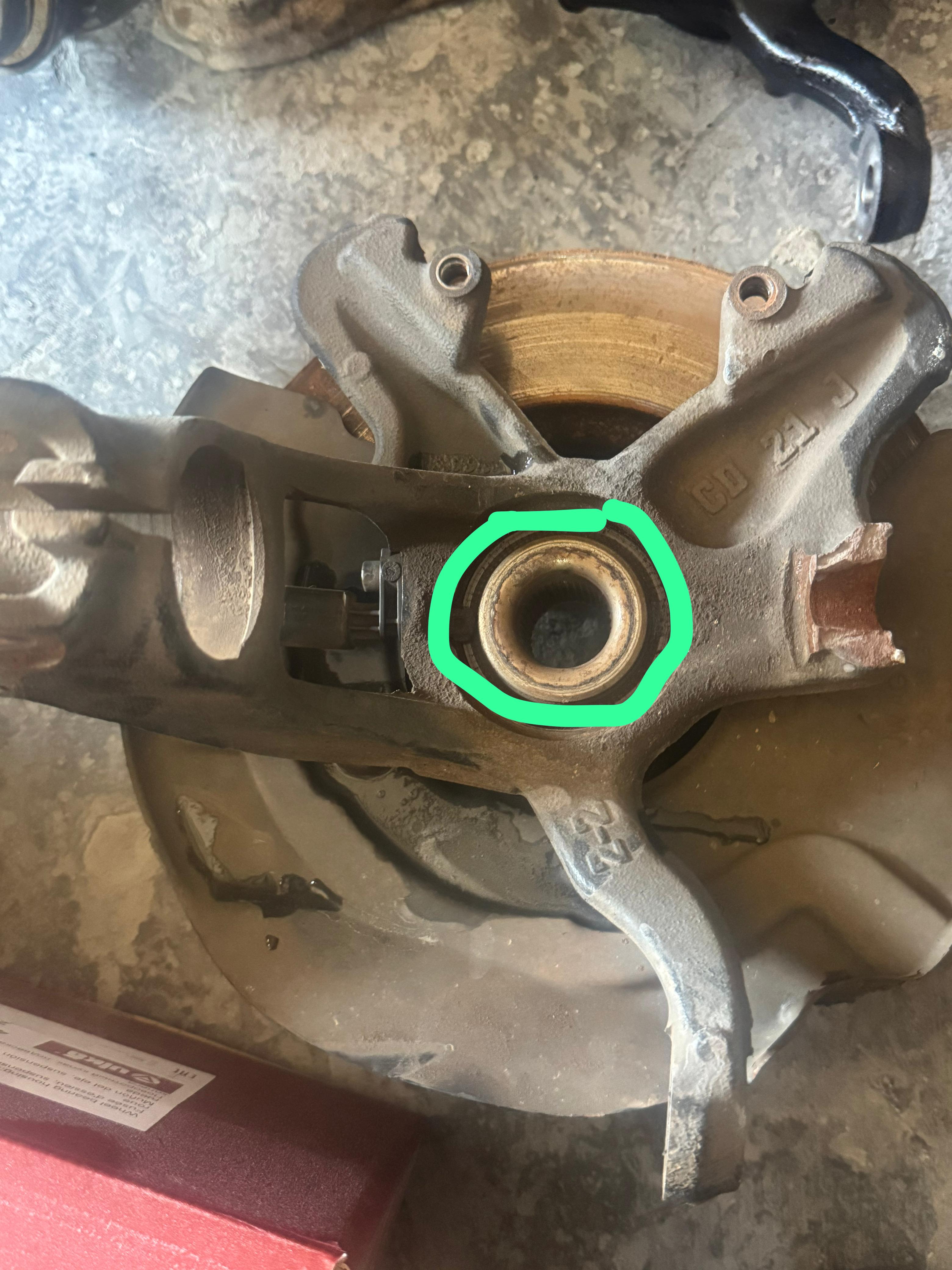

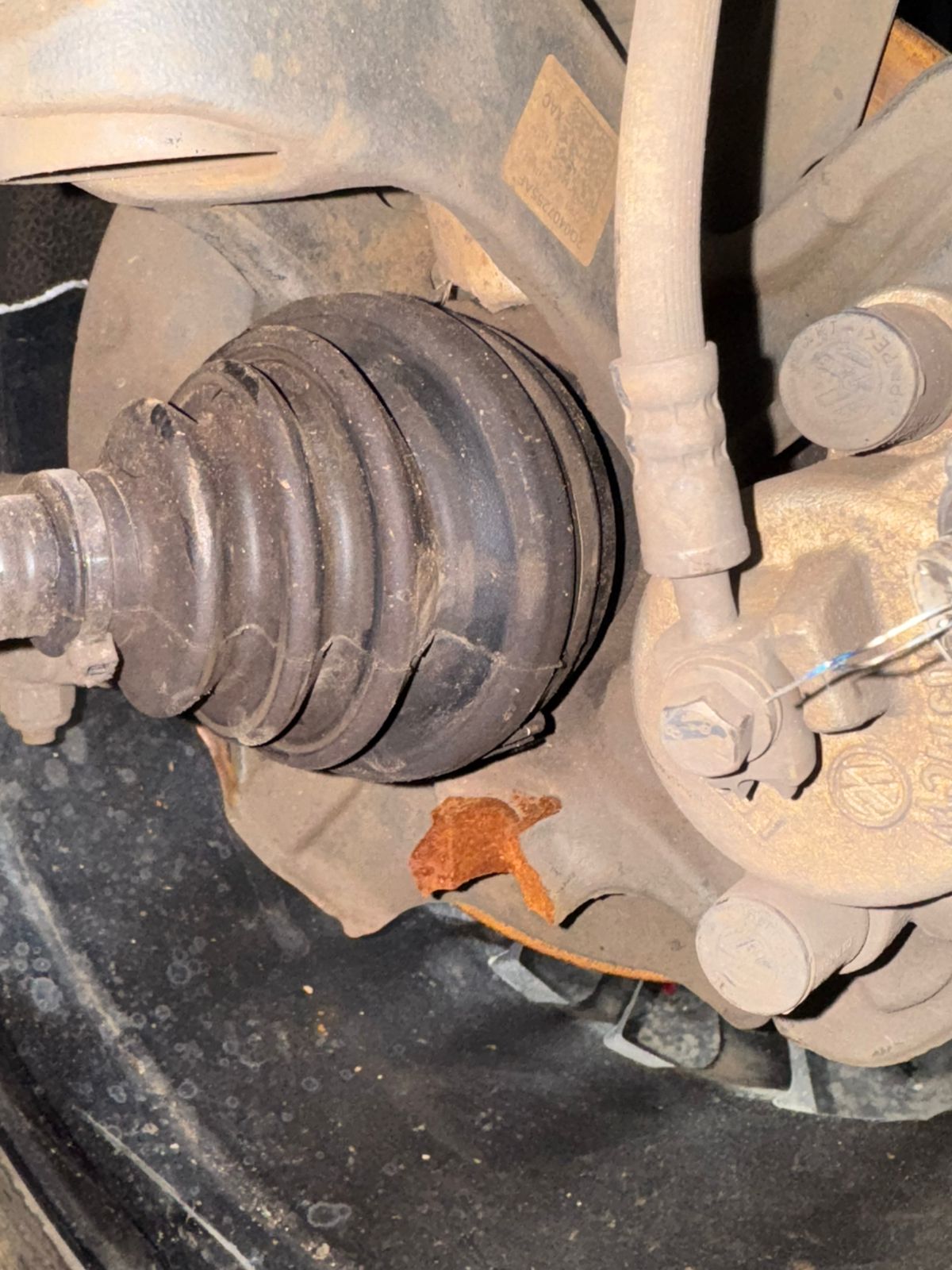

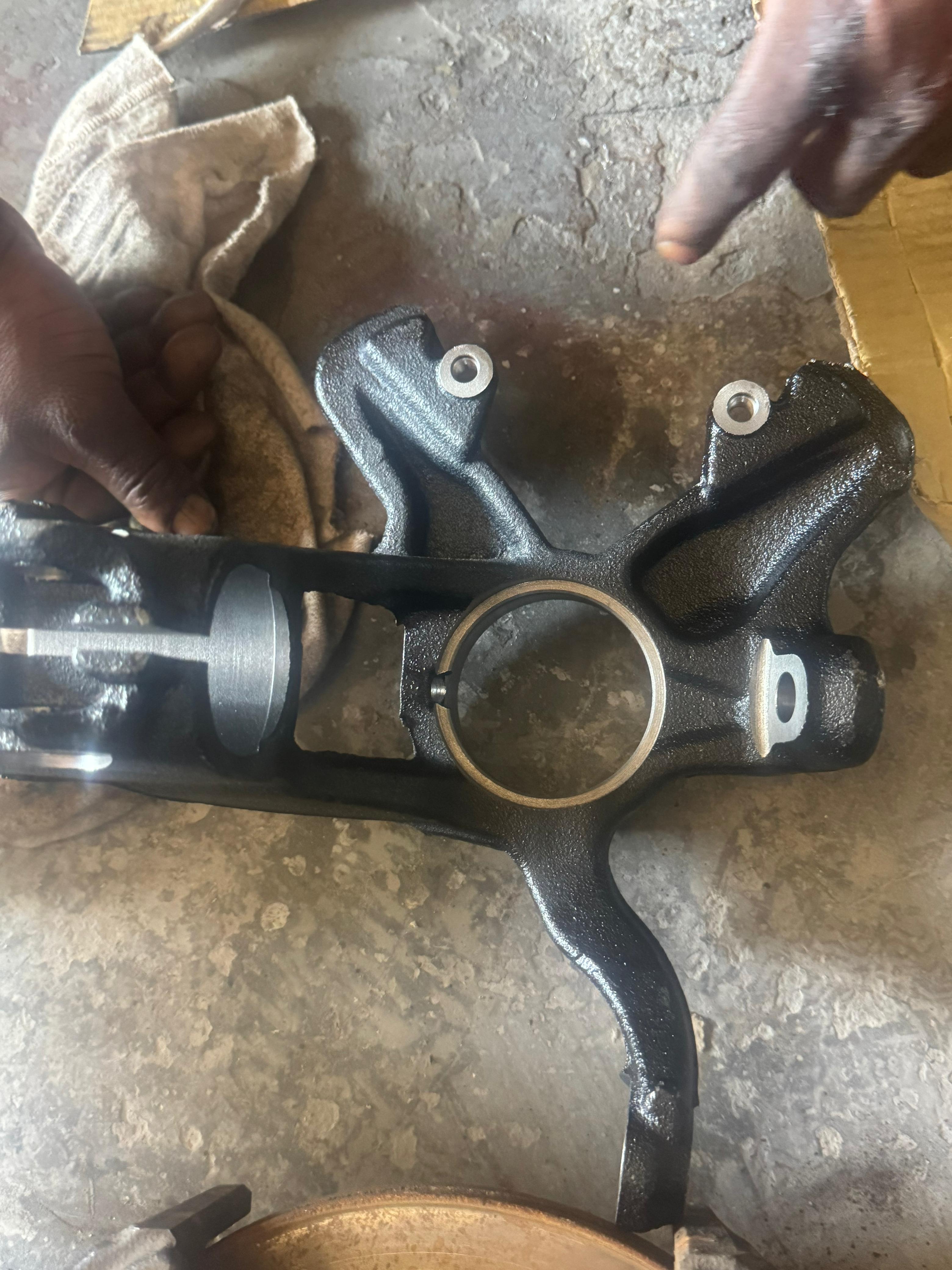

  • WheelBearing
  • Step Exale
  • Main Radiator

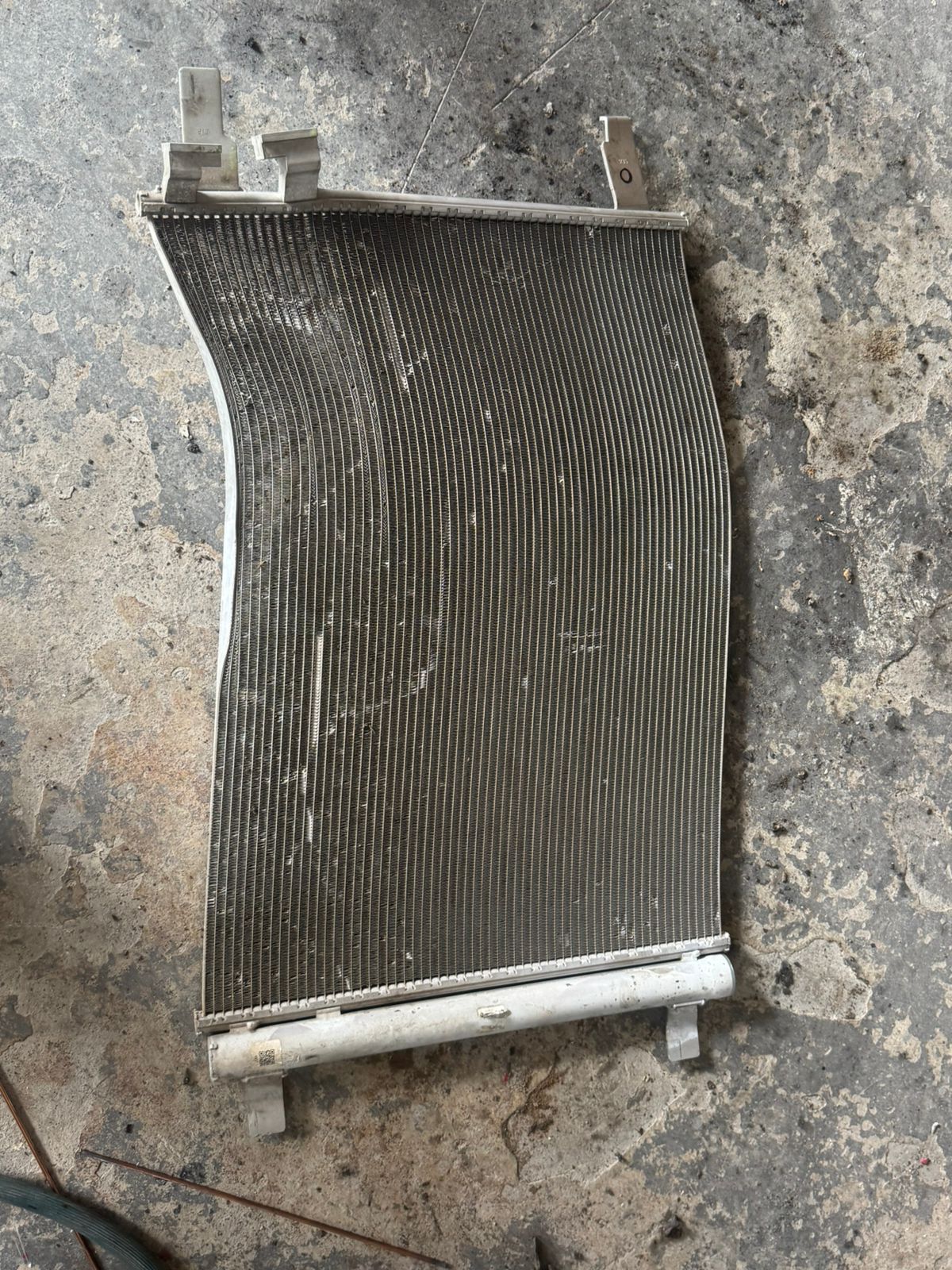

  • A/C Radiator

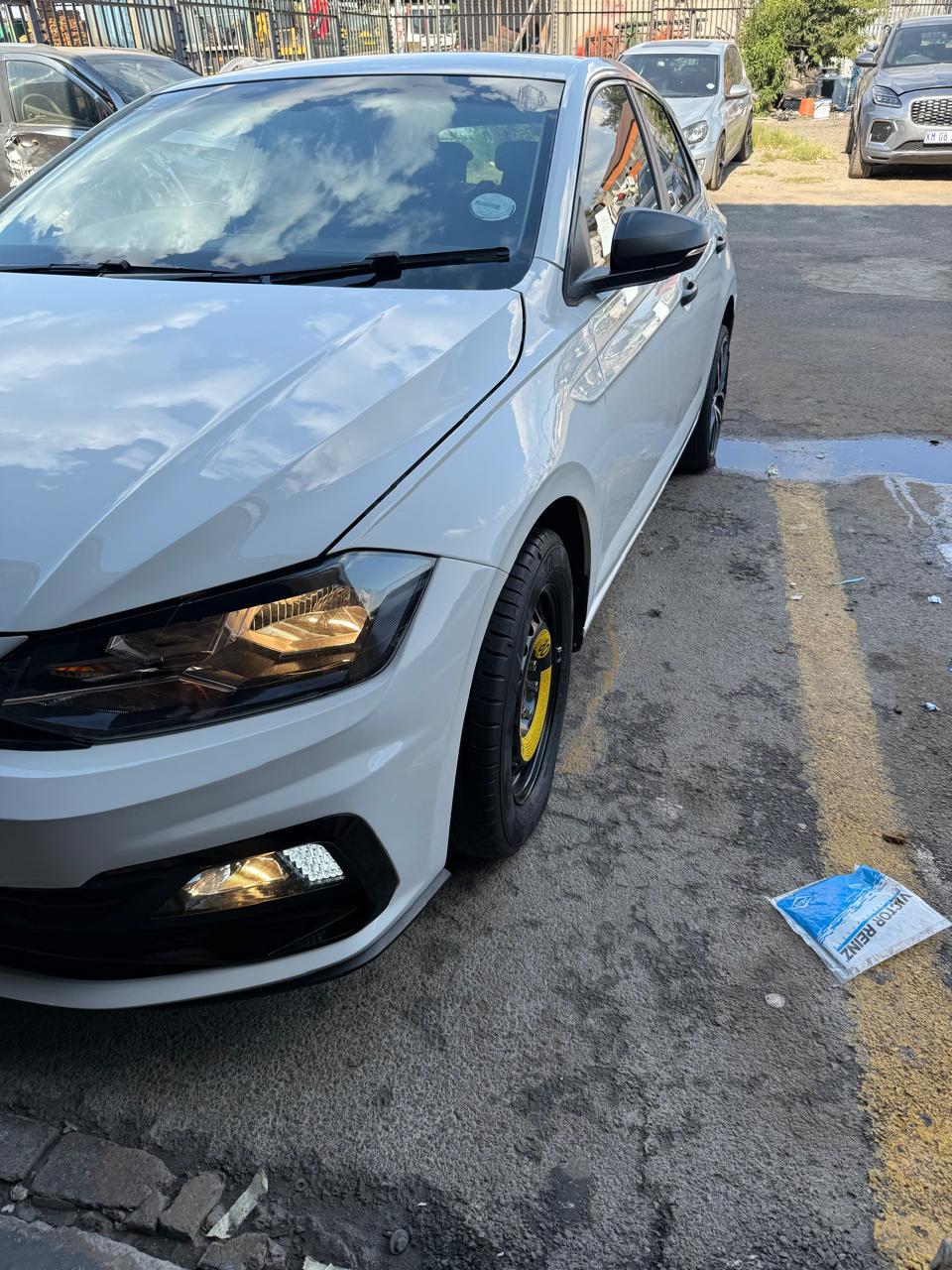

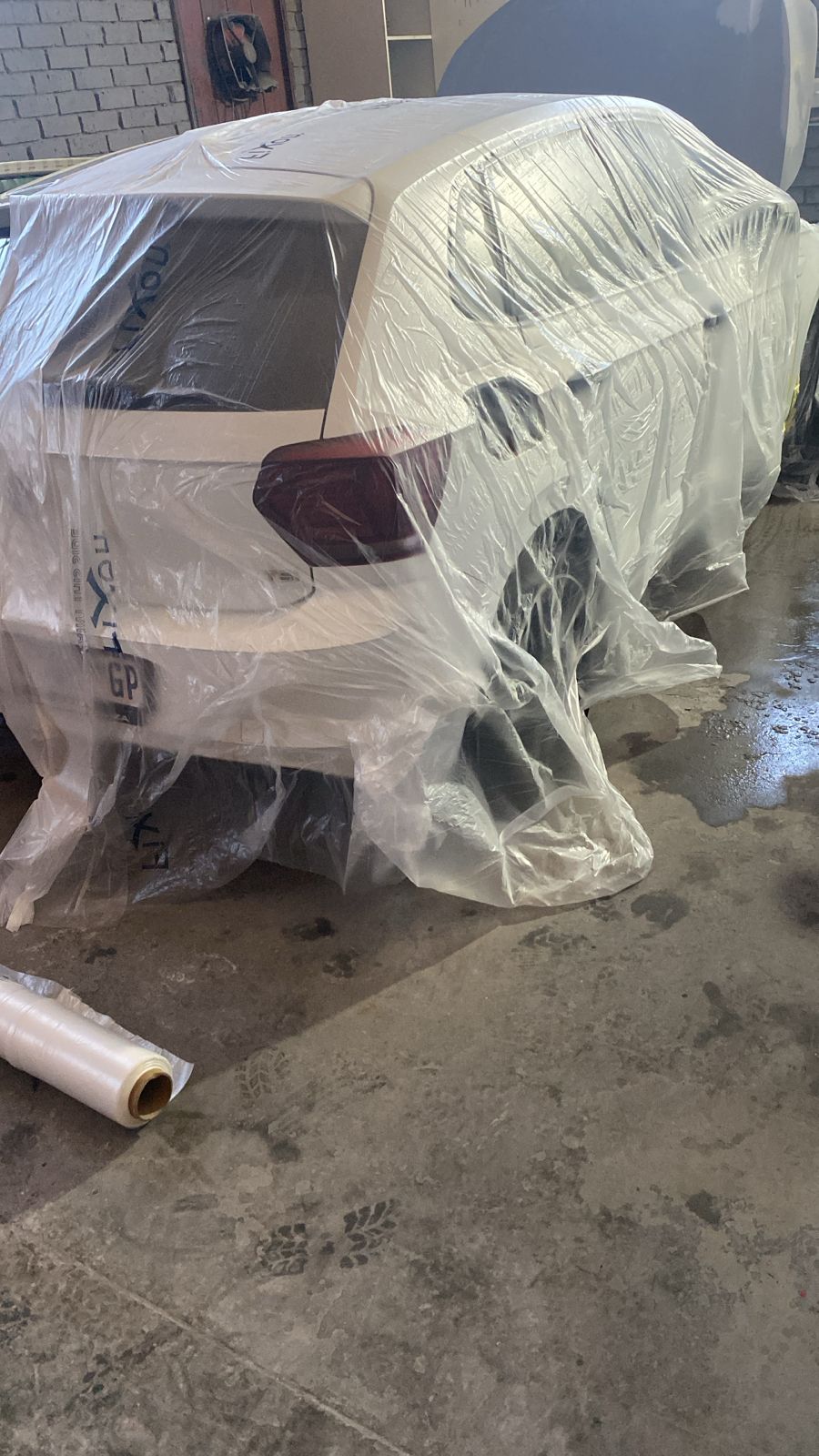

  • Preparing Body for Painting

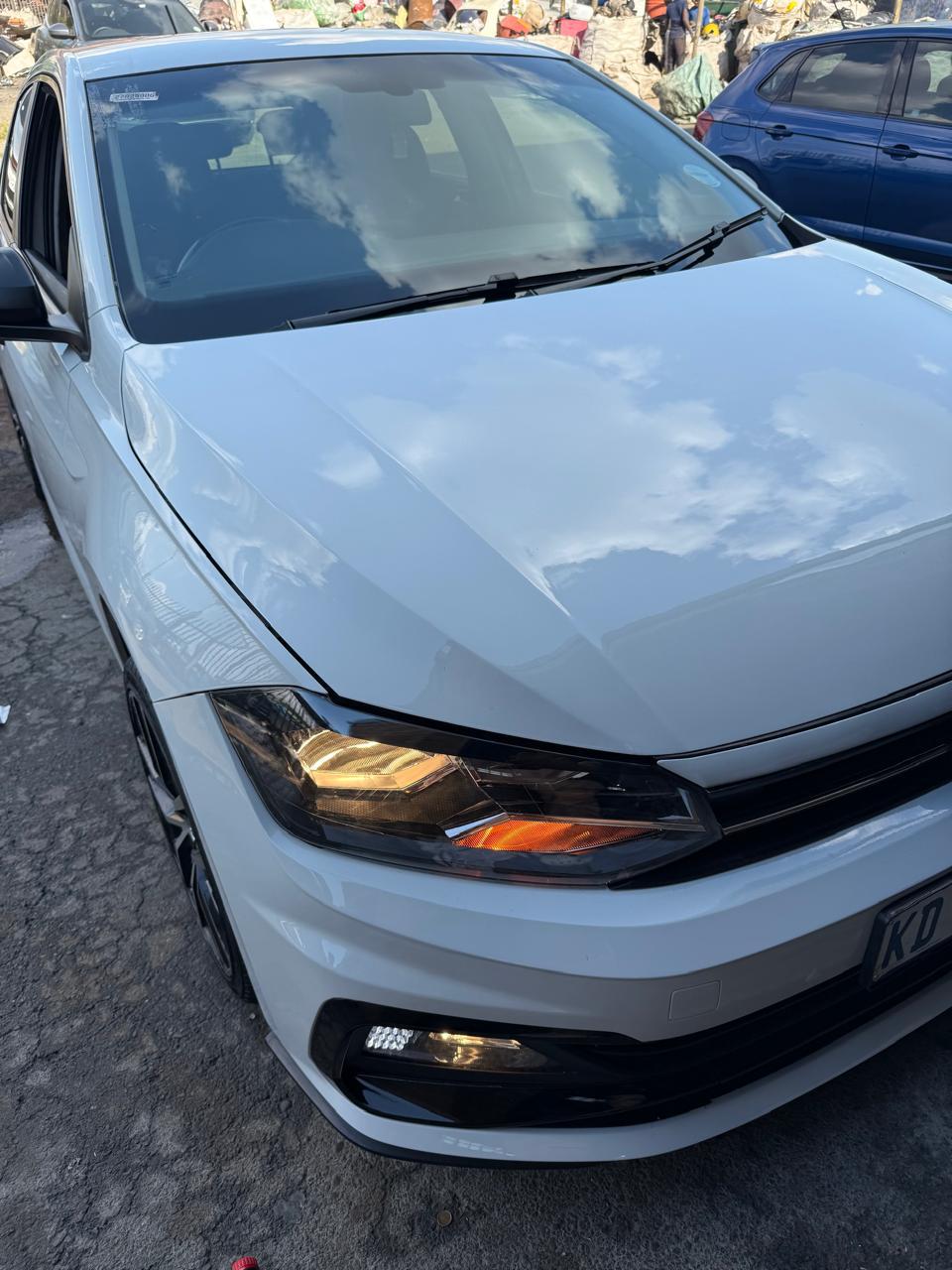

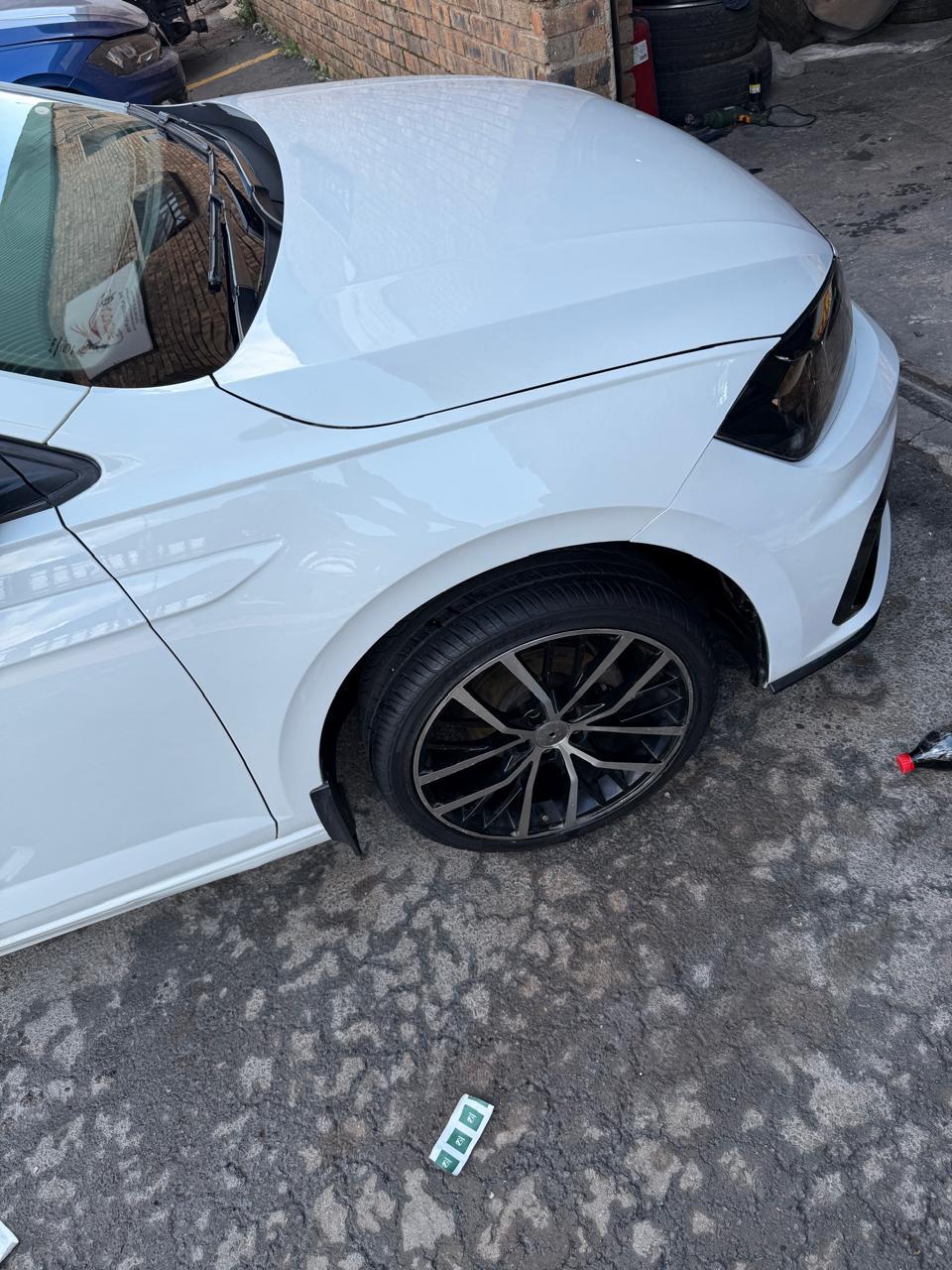

  • Painting
  • Drying Period
  • Assessing Paint reaction after painting

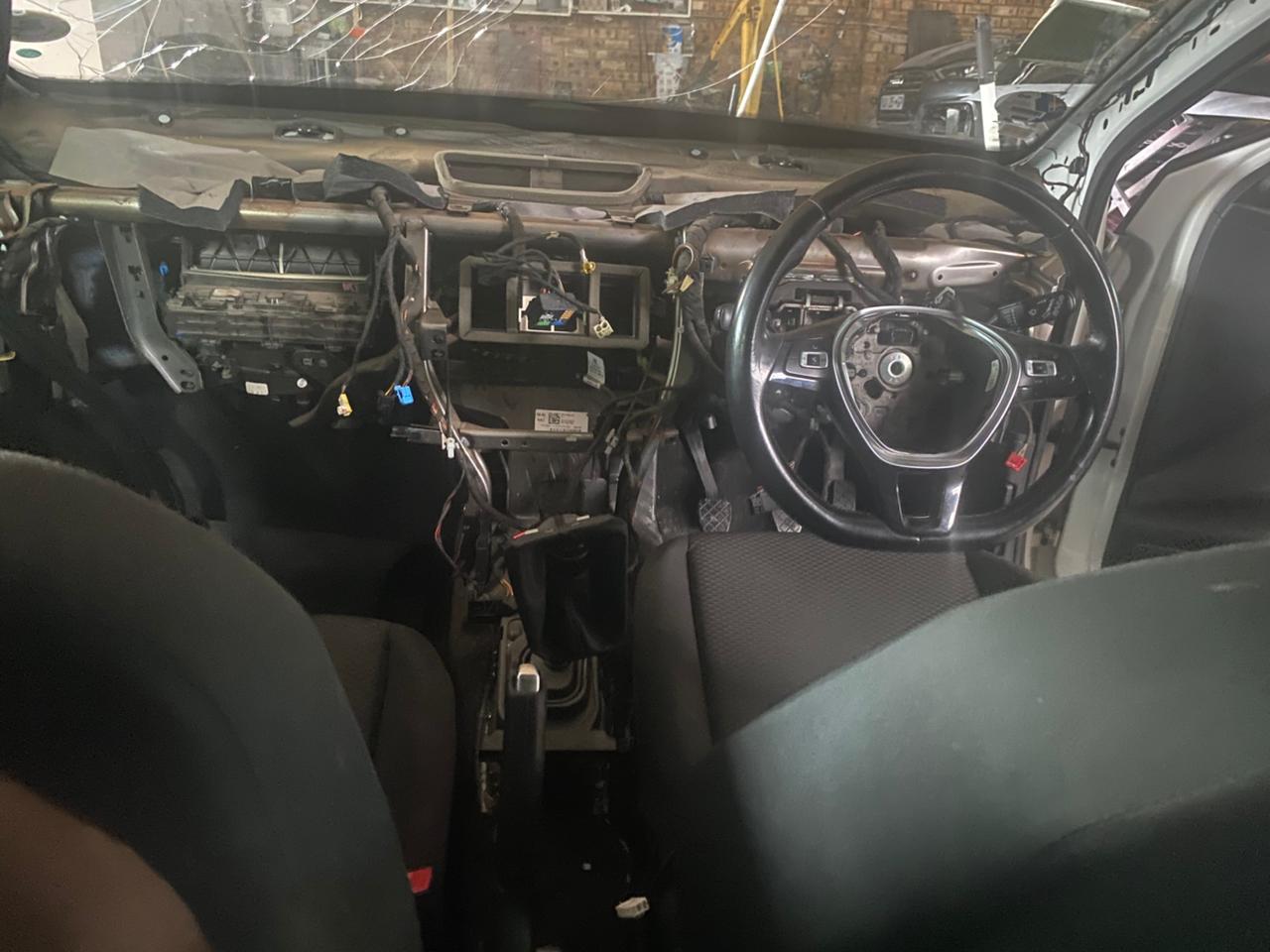

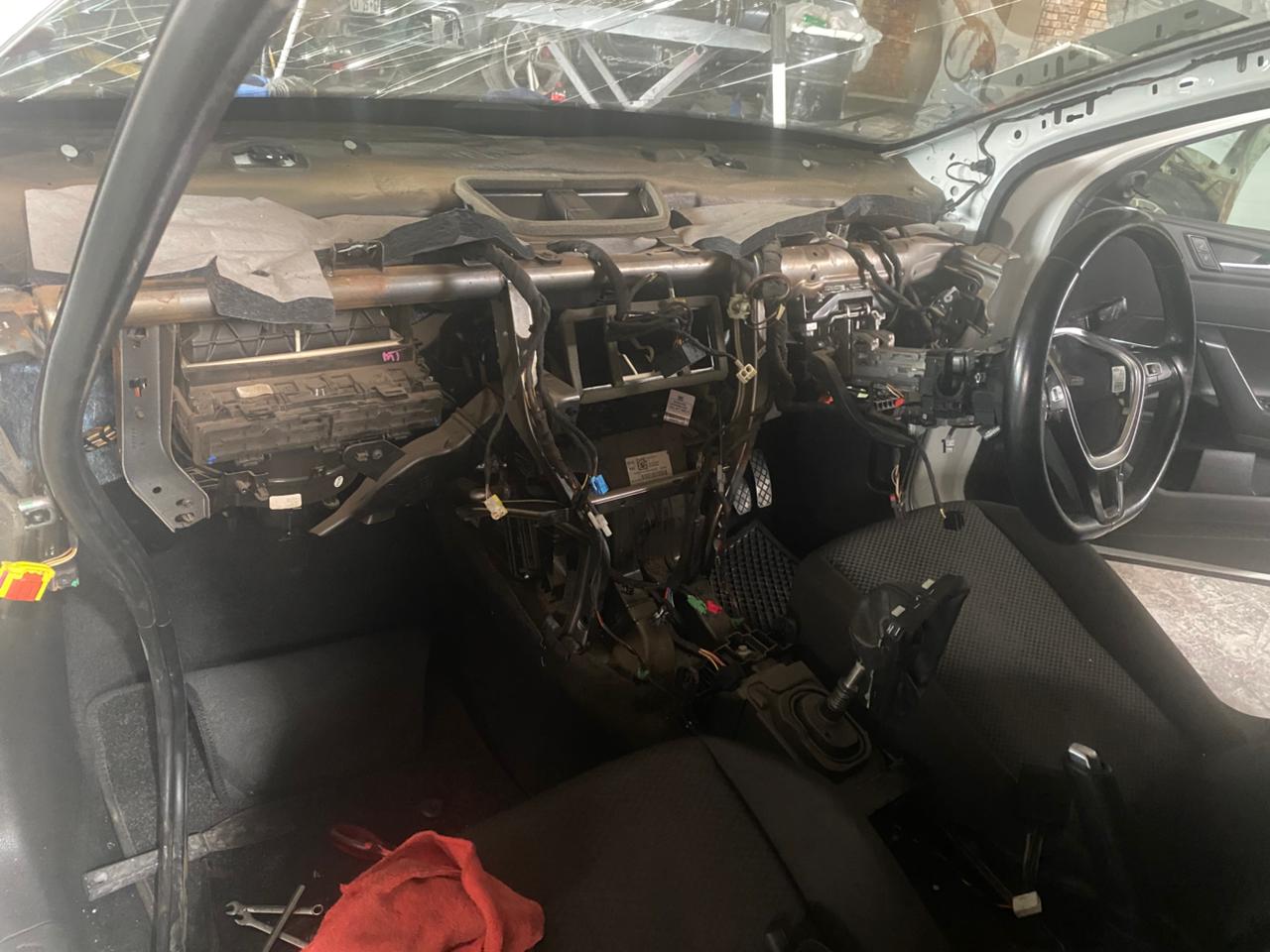

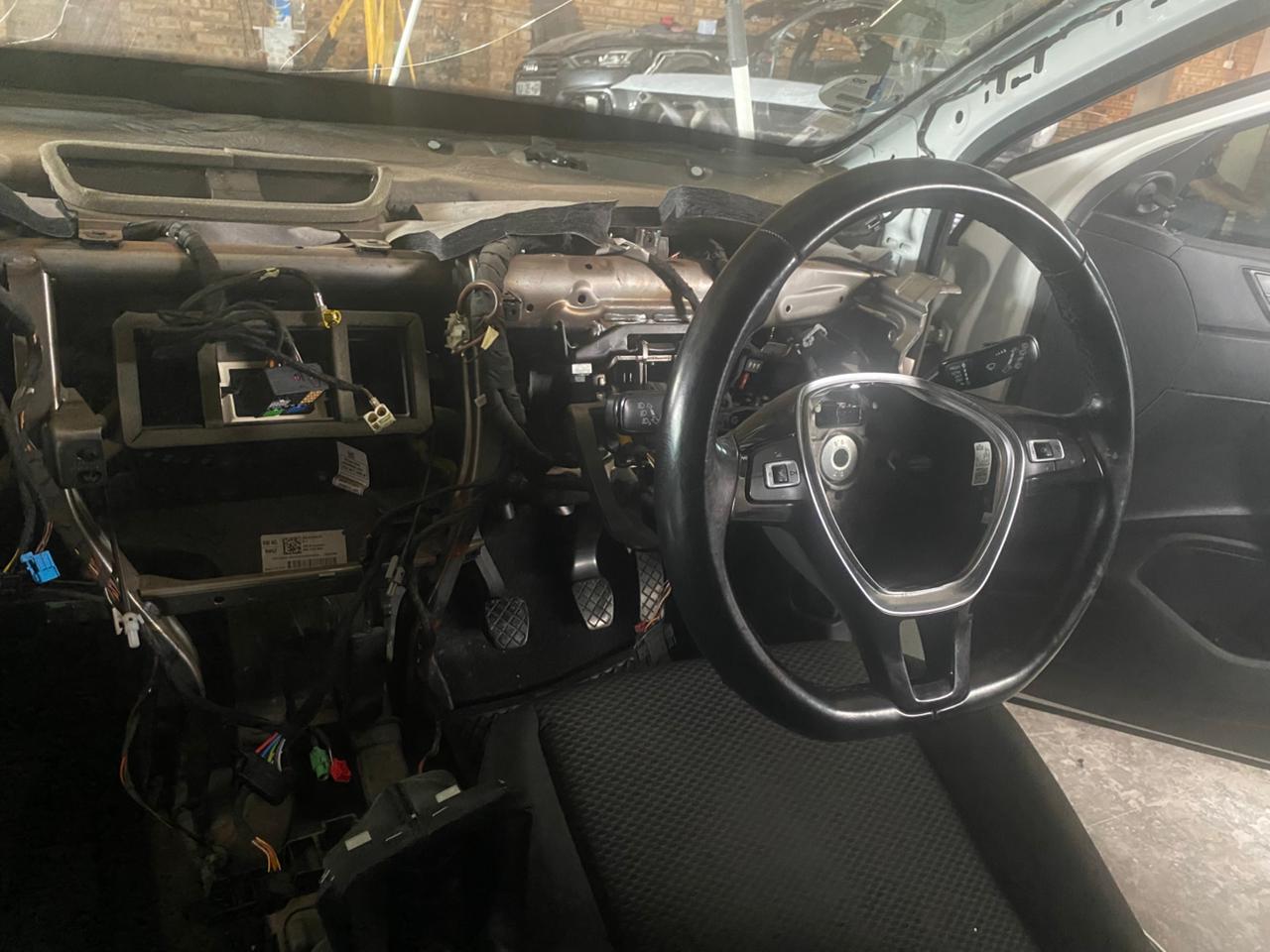

  • Airbag Modules
  • Airbags
  • Grill Badge (VW Main Badge)

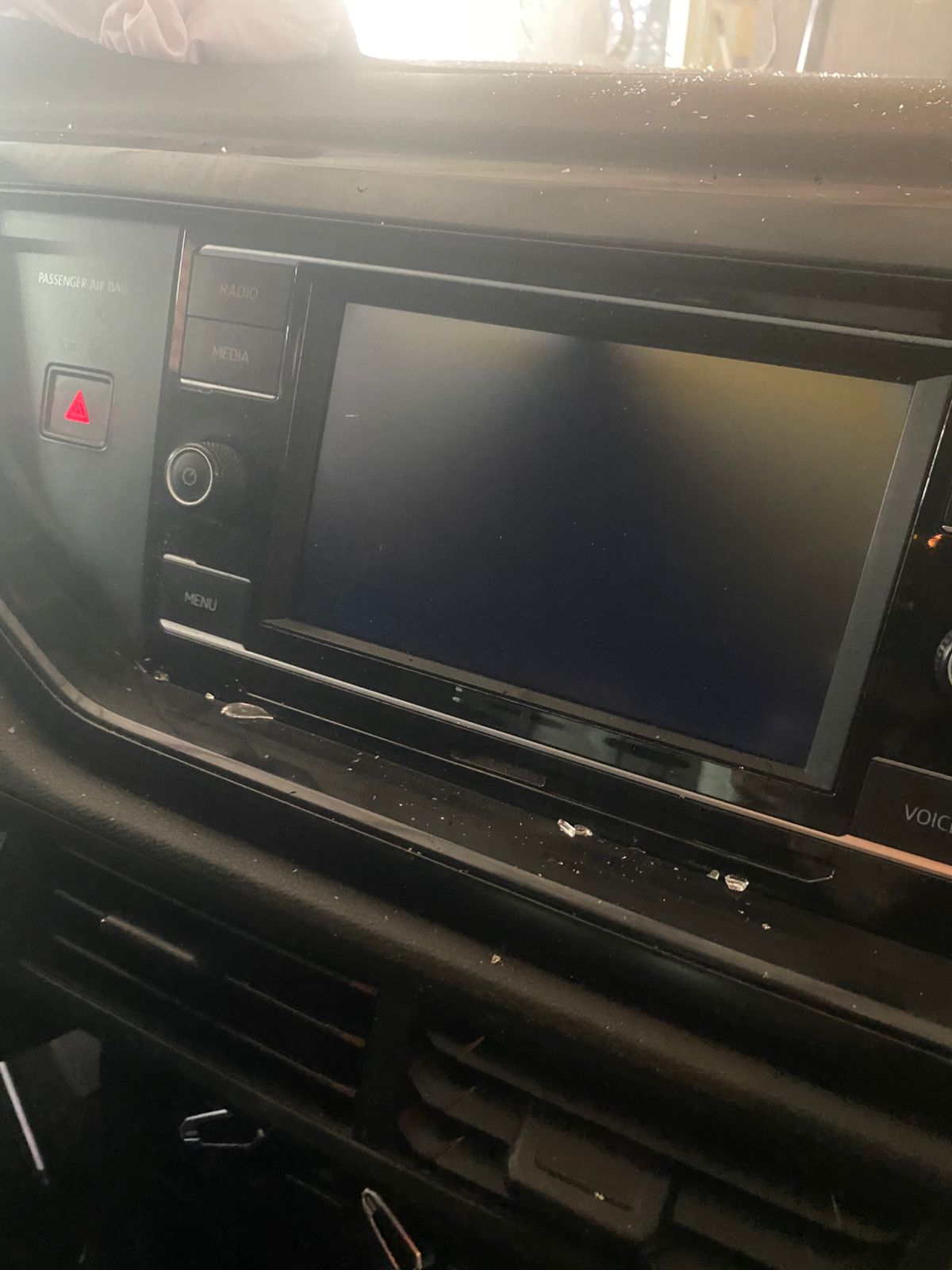

  • Radio Cracked - (to be tested after assembling Dash and Airbags)

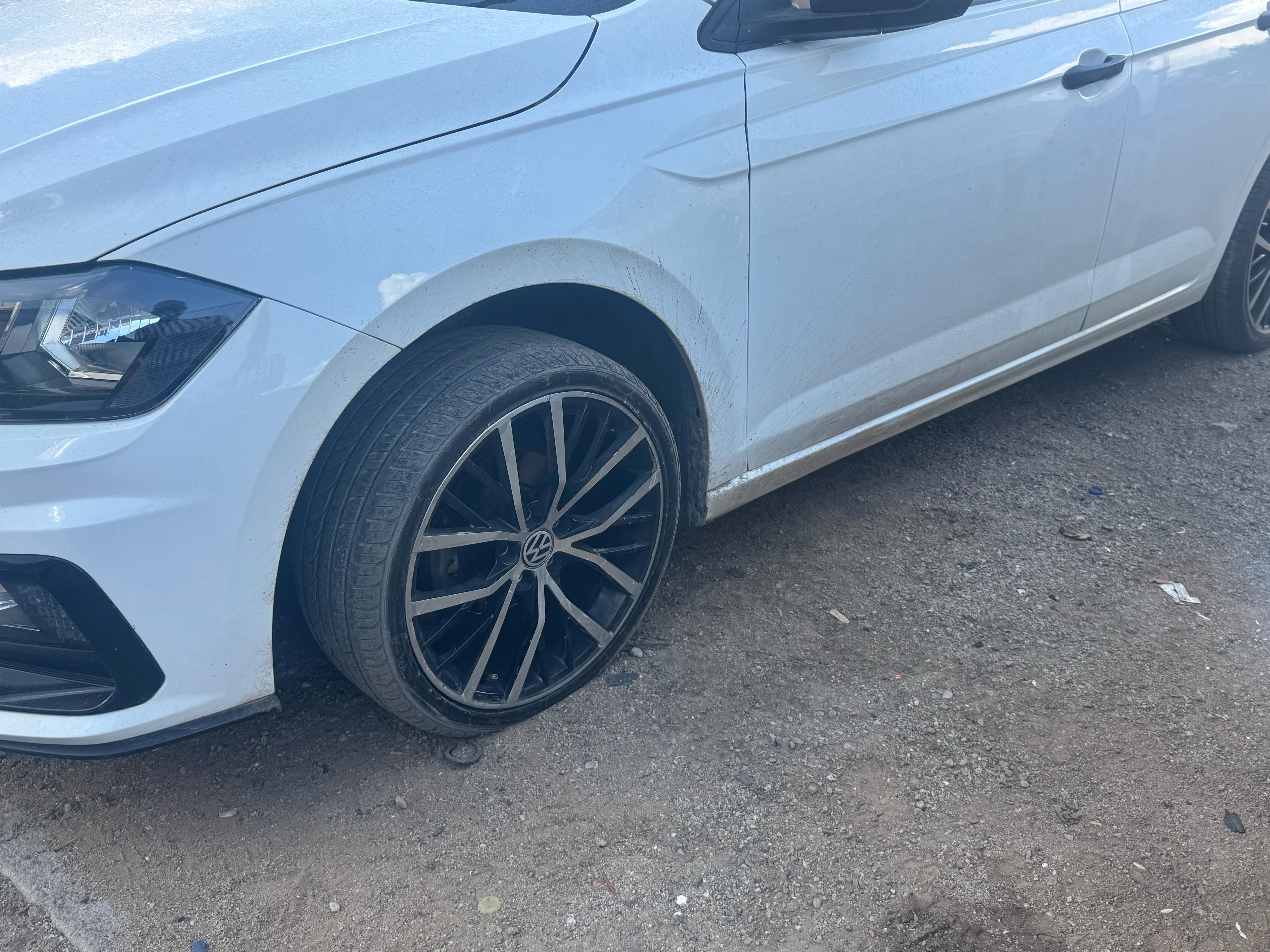

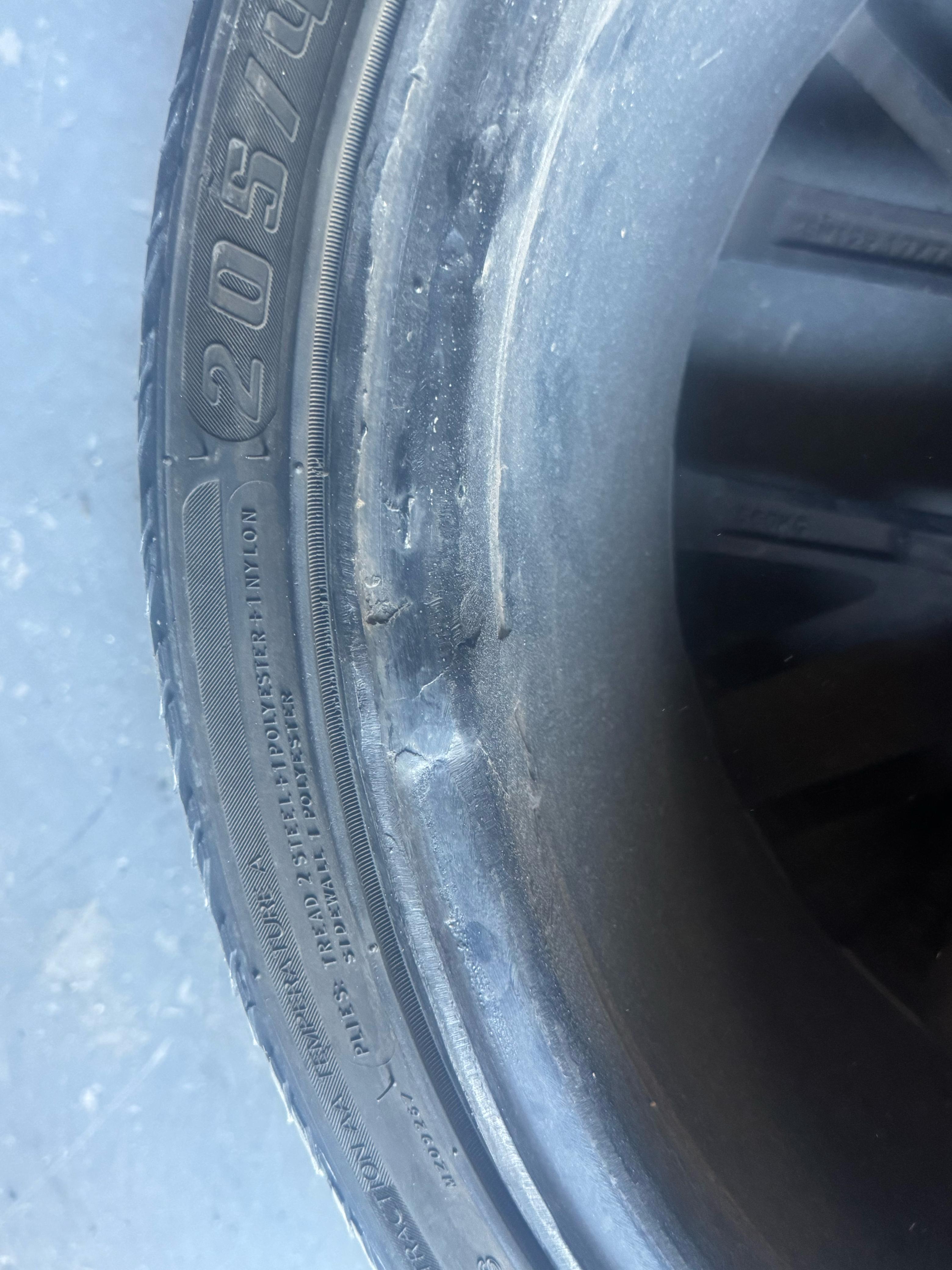

  • Tyre (new tyre needed

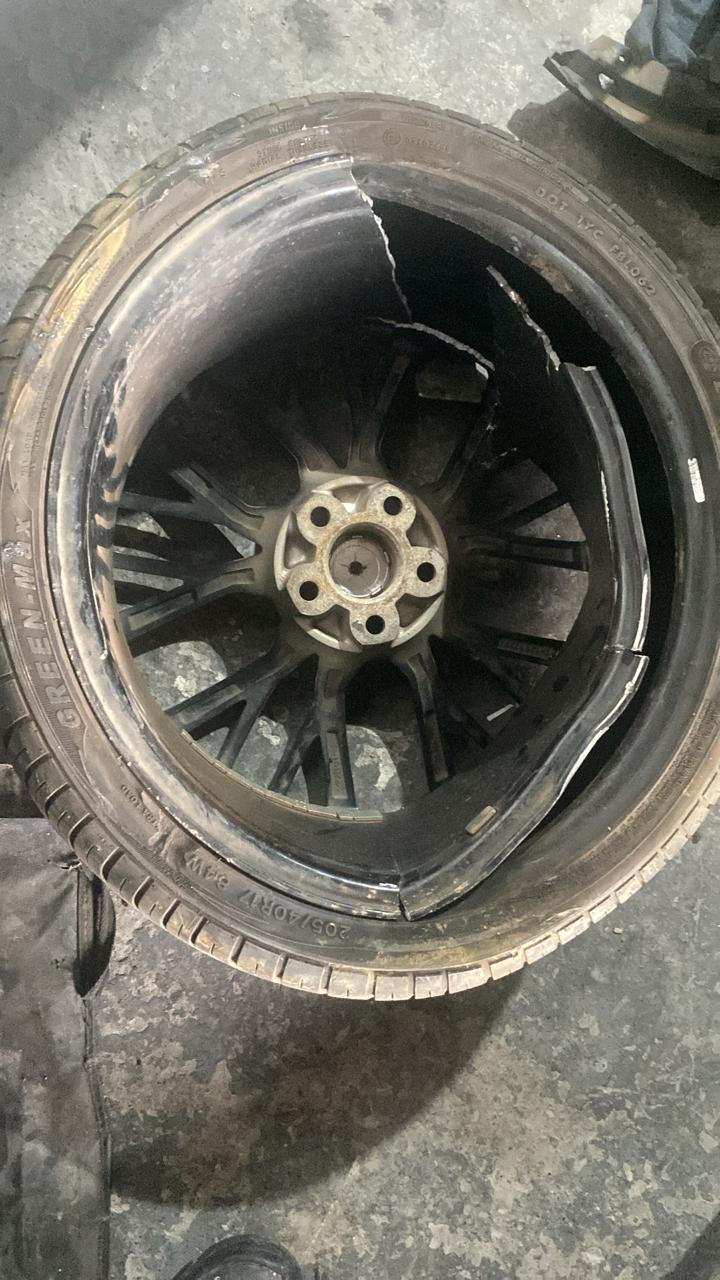

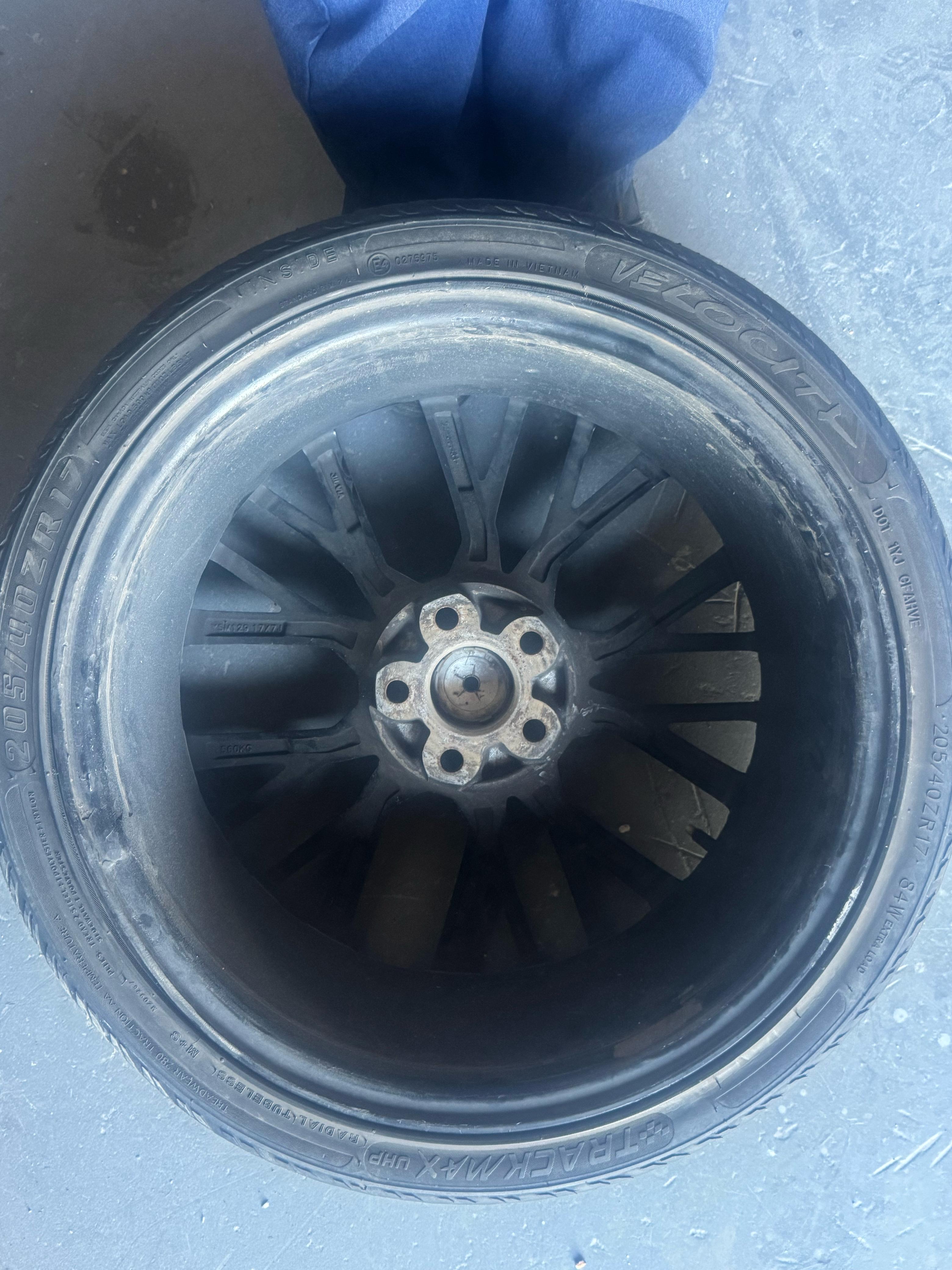

  • Rim (Client to supply Rim)

🟢 Mechanical JobCard Re-Opened

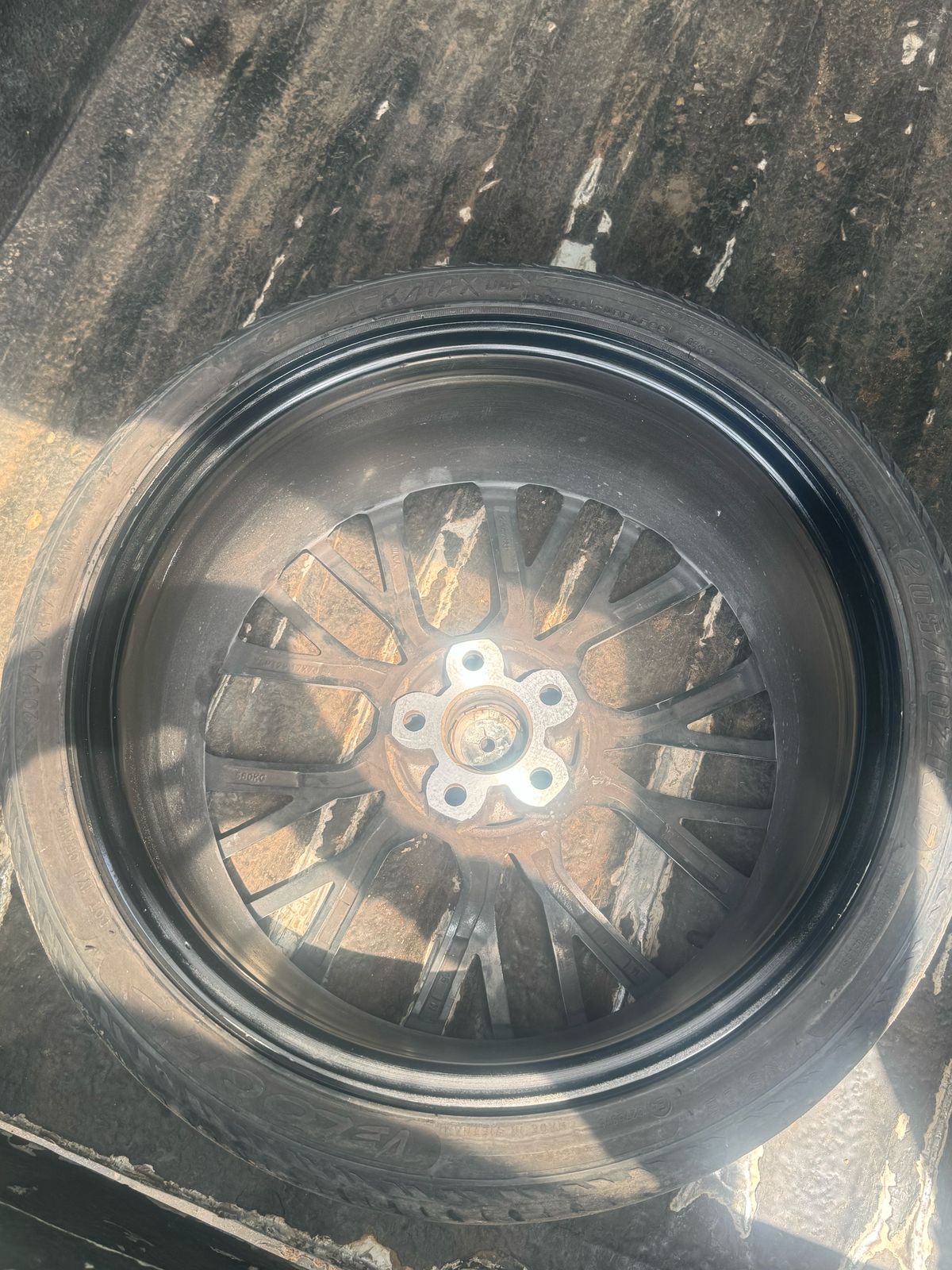

  • 🟢Rim Repaired
  • 🟢Mechanical Diagnosis
  • 🟢Error Tracing

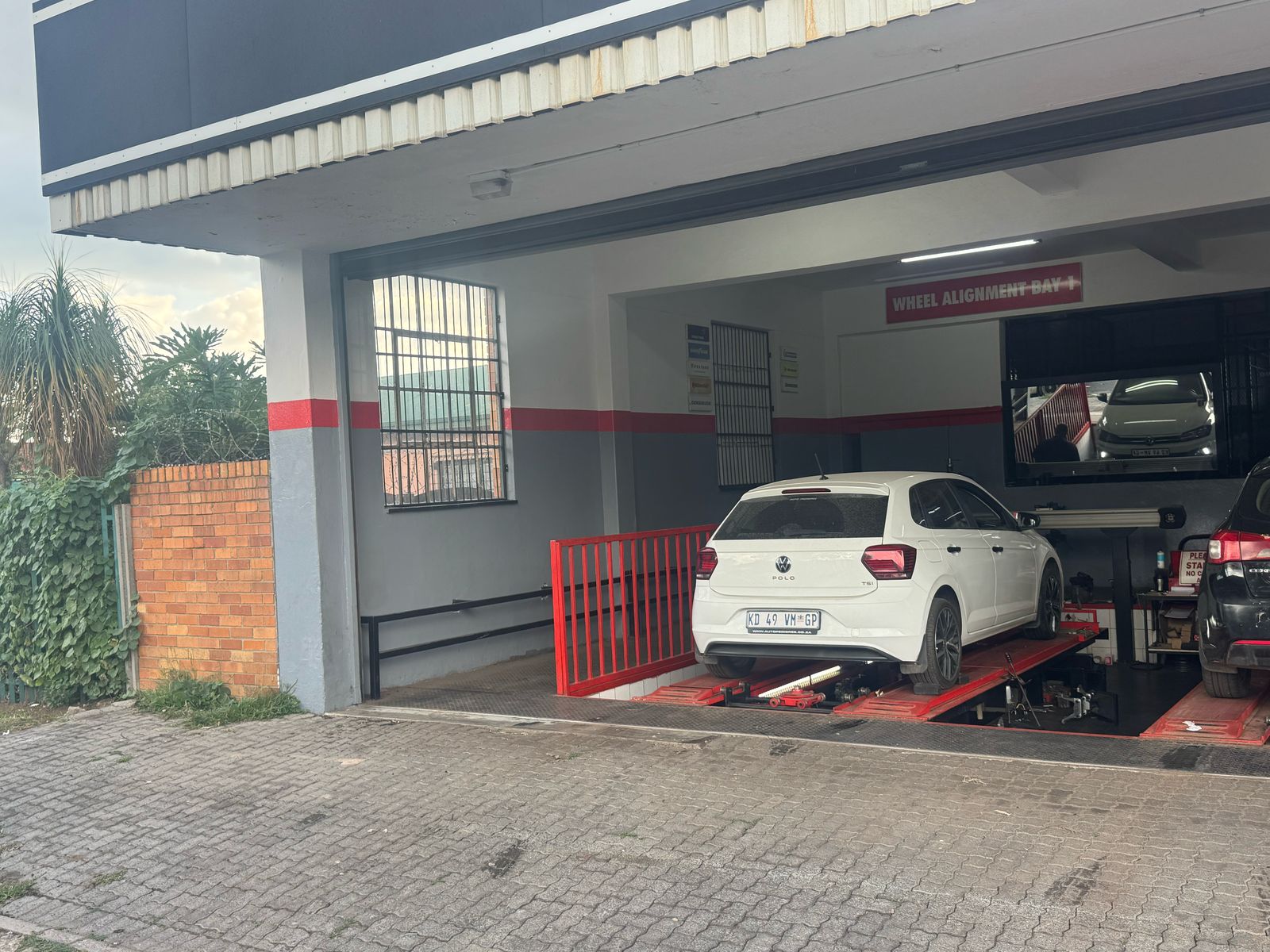

  • 🟢Alignment

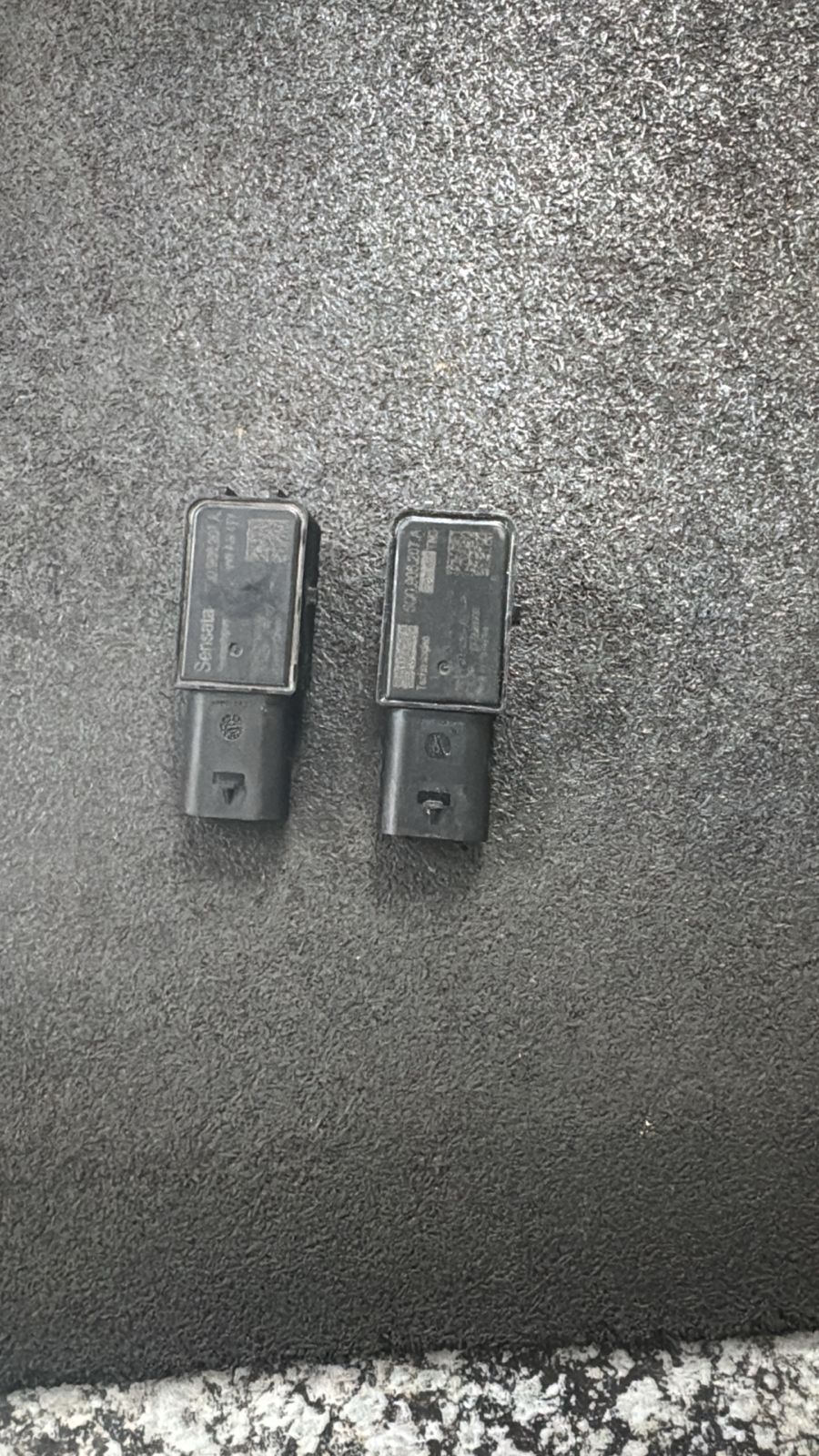

  • 🟢Brake Pressure Sensor

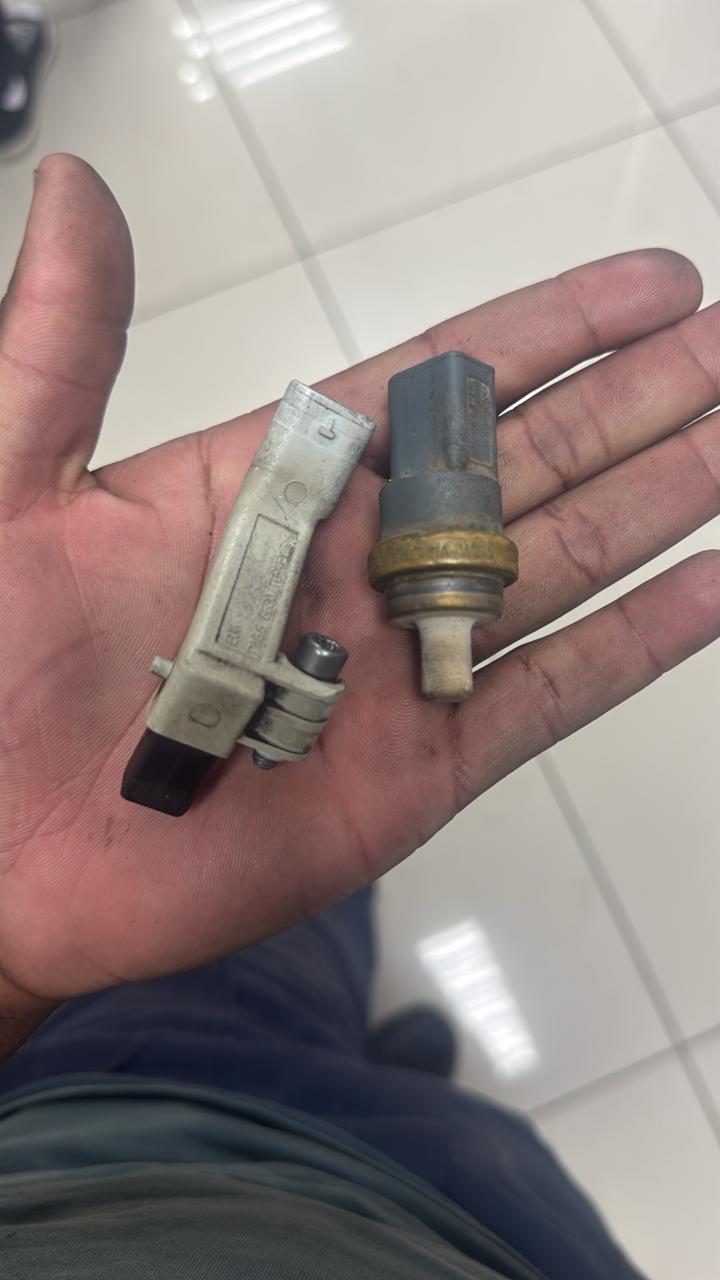

  • 🟢Crank Shaft Sensor
  • 🟢Temparature Sensor

🔄 Work In-progress

  • 🟢Testing

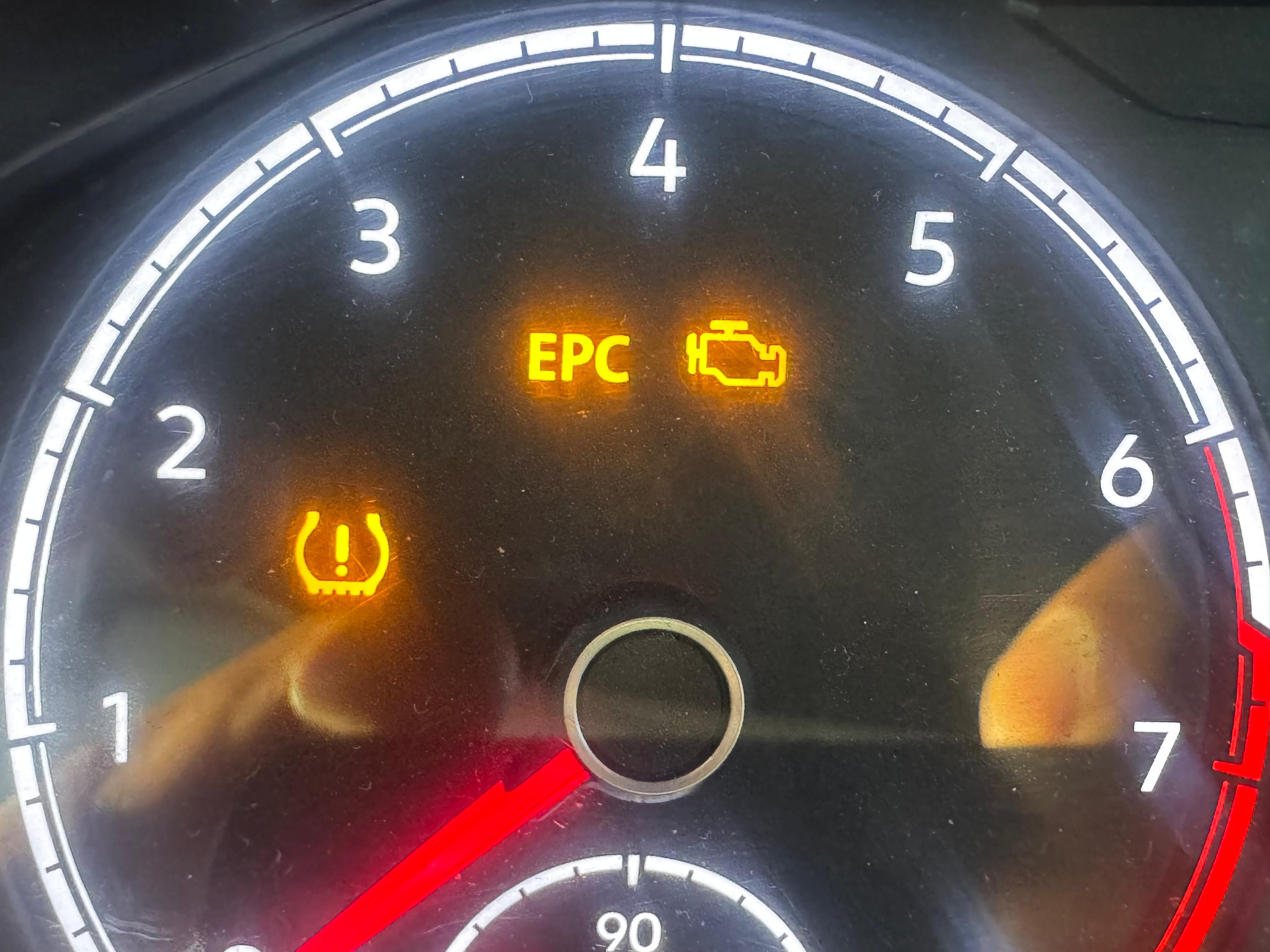

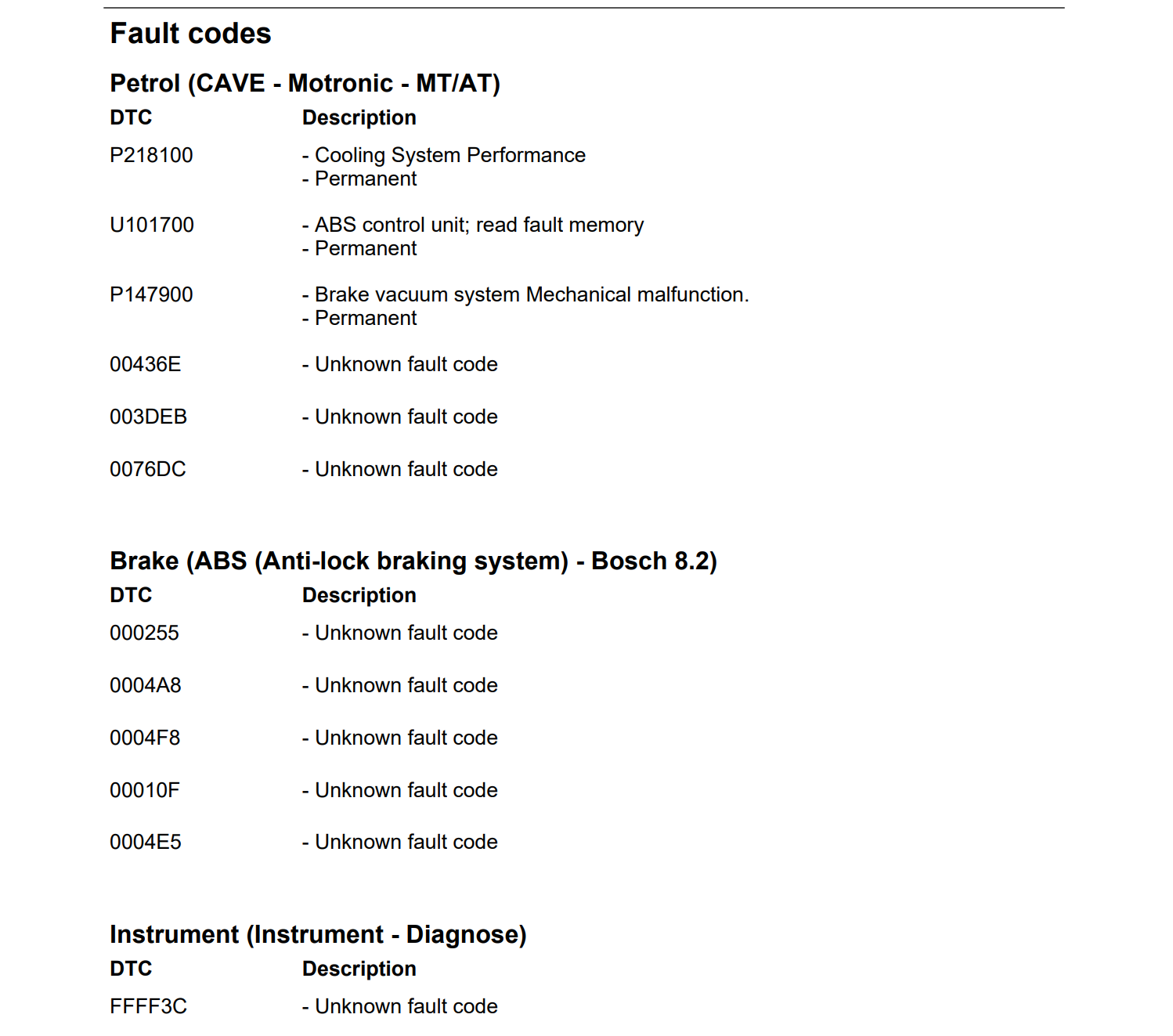

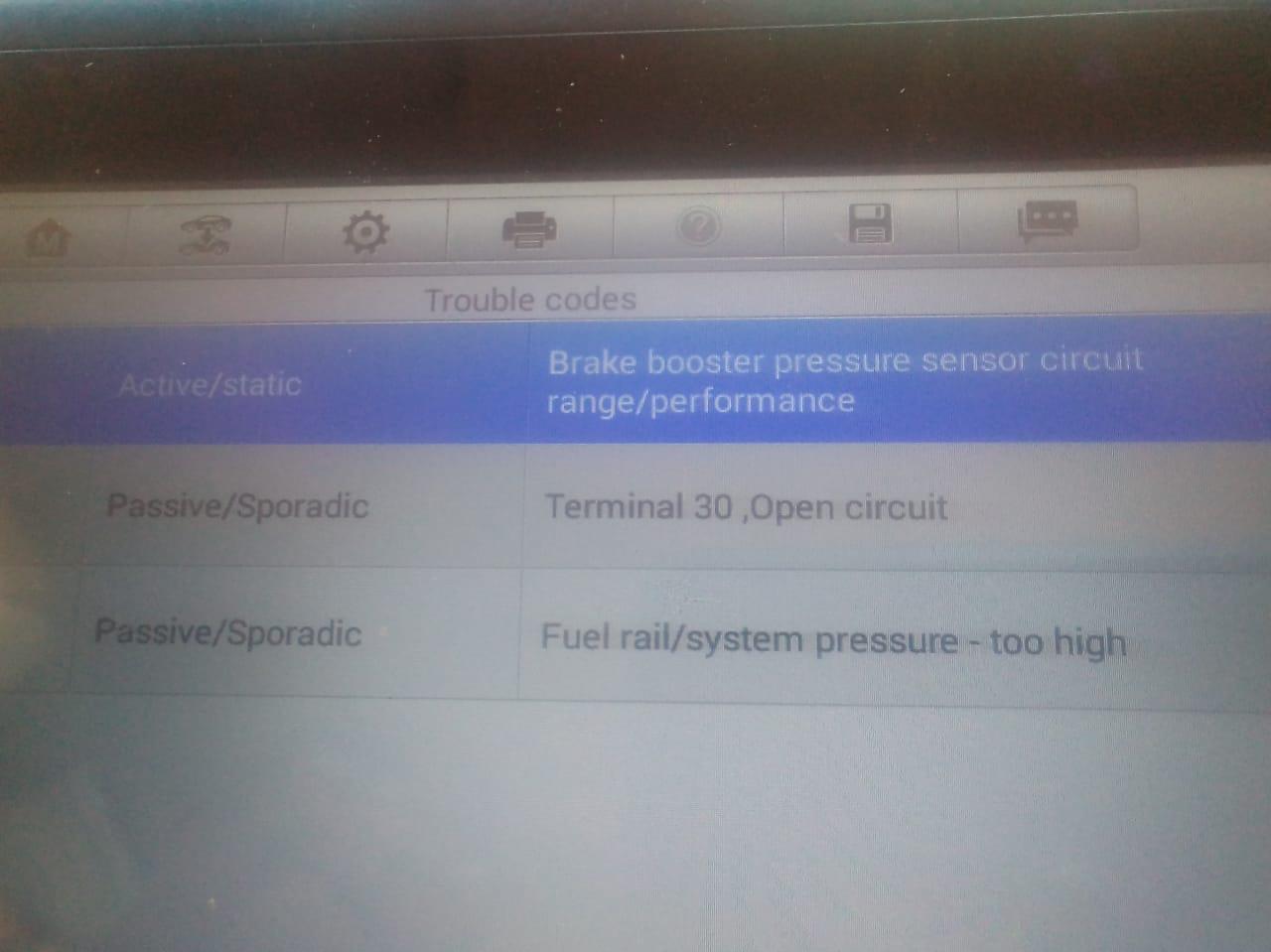

🟢 Errors & Issues Identified (Fixed)

  • 🟢U101700 - ABS control unit; read fault memory(ABS brake control module. This code suggests that the ABS system is unable to read or process diagnostic trouble codes (DTCs) from the control module, which can lead to ABS malfunctions or the illumination of warning lights.)
  • 🟢0004F8 - crankshaft position sensor (engine speed sensor)- (This sensor monitors the engine's RPM and position, providing critical data to the engine control unit (ECU) for optimal performance.)
  • 🟢U112300 - Databus Error - Failure of the frame CAN bus
  • 🟢P147900 - Brake vacuum system Mechanical malfunction. (Potential Causes: Faulty brake vacuum pump. Damaged or leaking vacuum hoses. Malfunctioning check valves. Issues with the brake booster itself.)
  • 🟢P218100 - Cooling System Performance(engine control module (ECM) detects an abnormal reading from the coolant temperature sensor. Possible causes of this error include: Faulty Coolant Temperature Sensor: The sensor could be malfunctioning and providing incorrect readings. Faulty Engine Control Module (ECM) Thermostat Problems

🛑 Errors & Issues

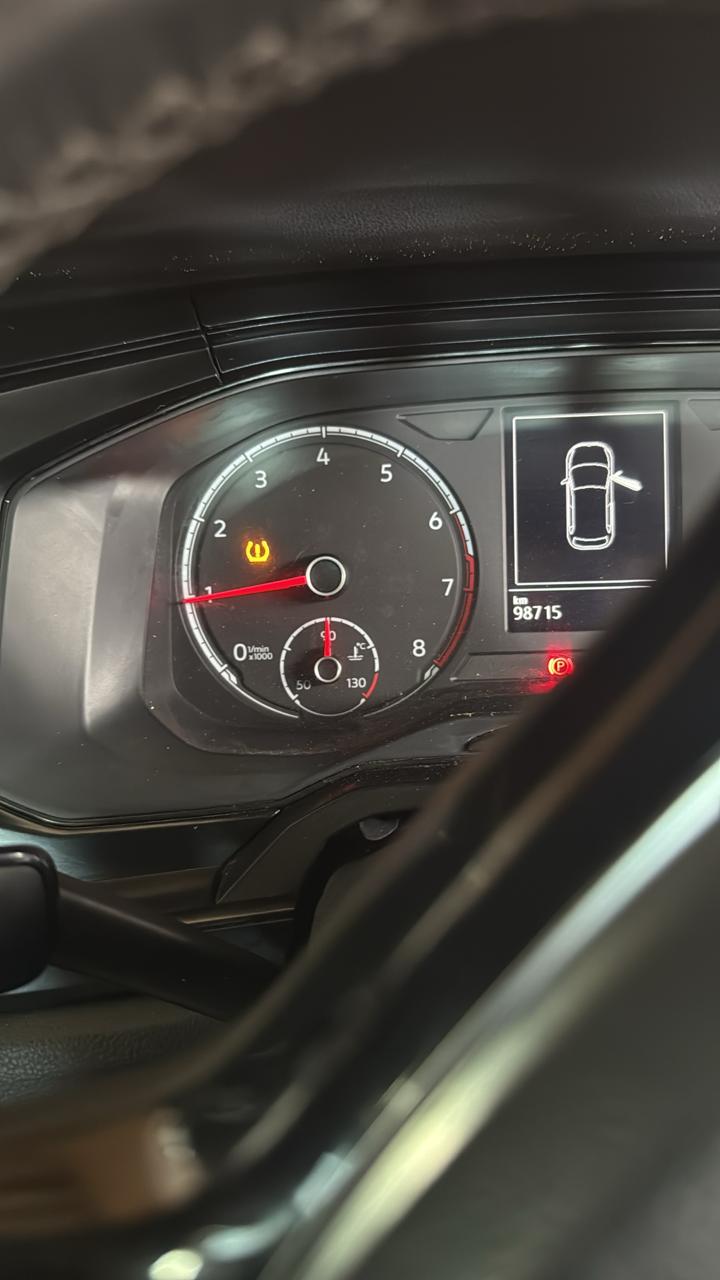

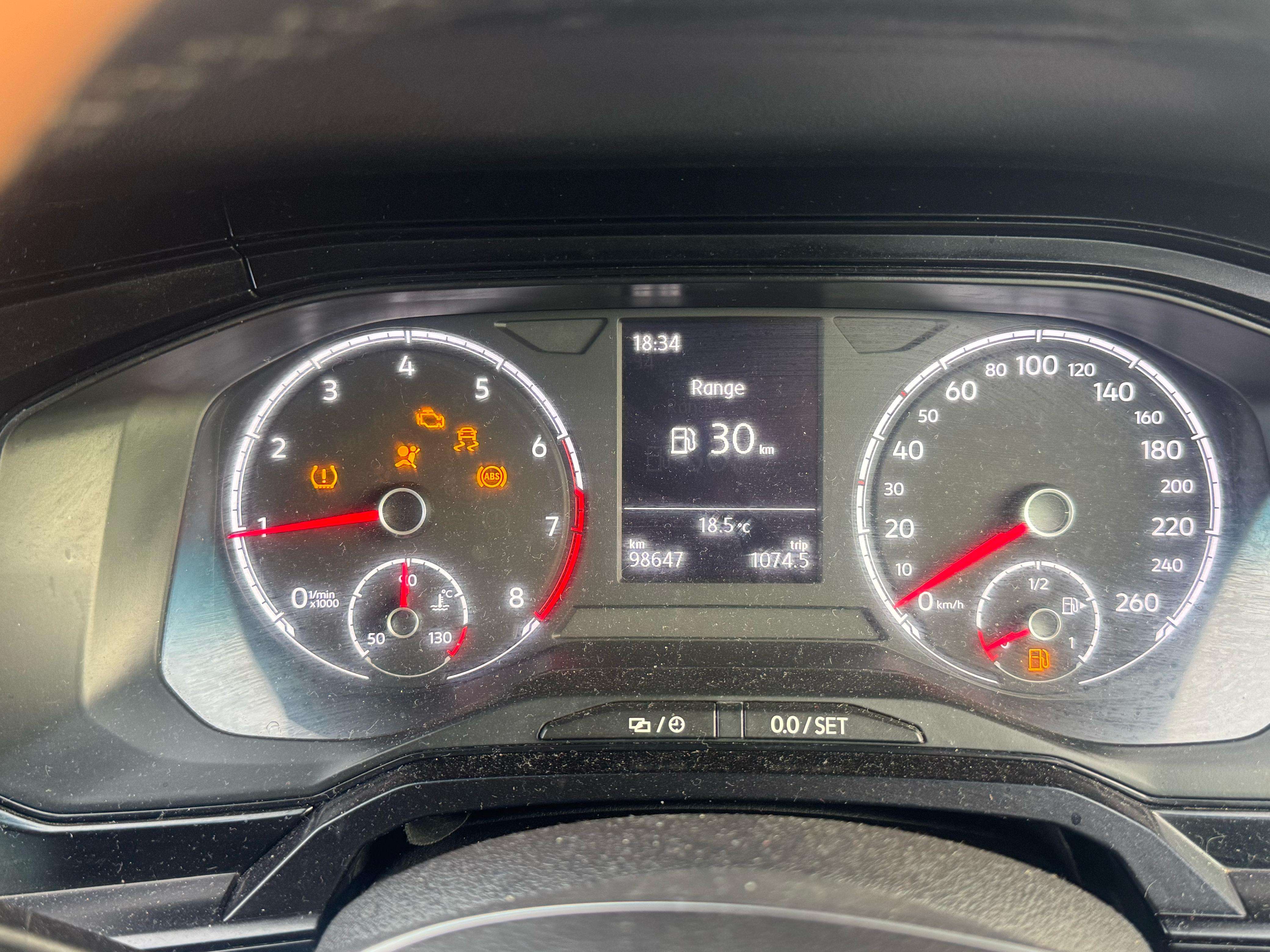

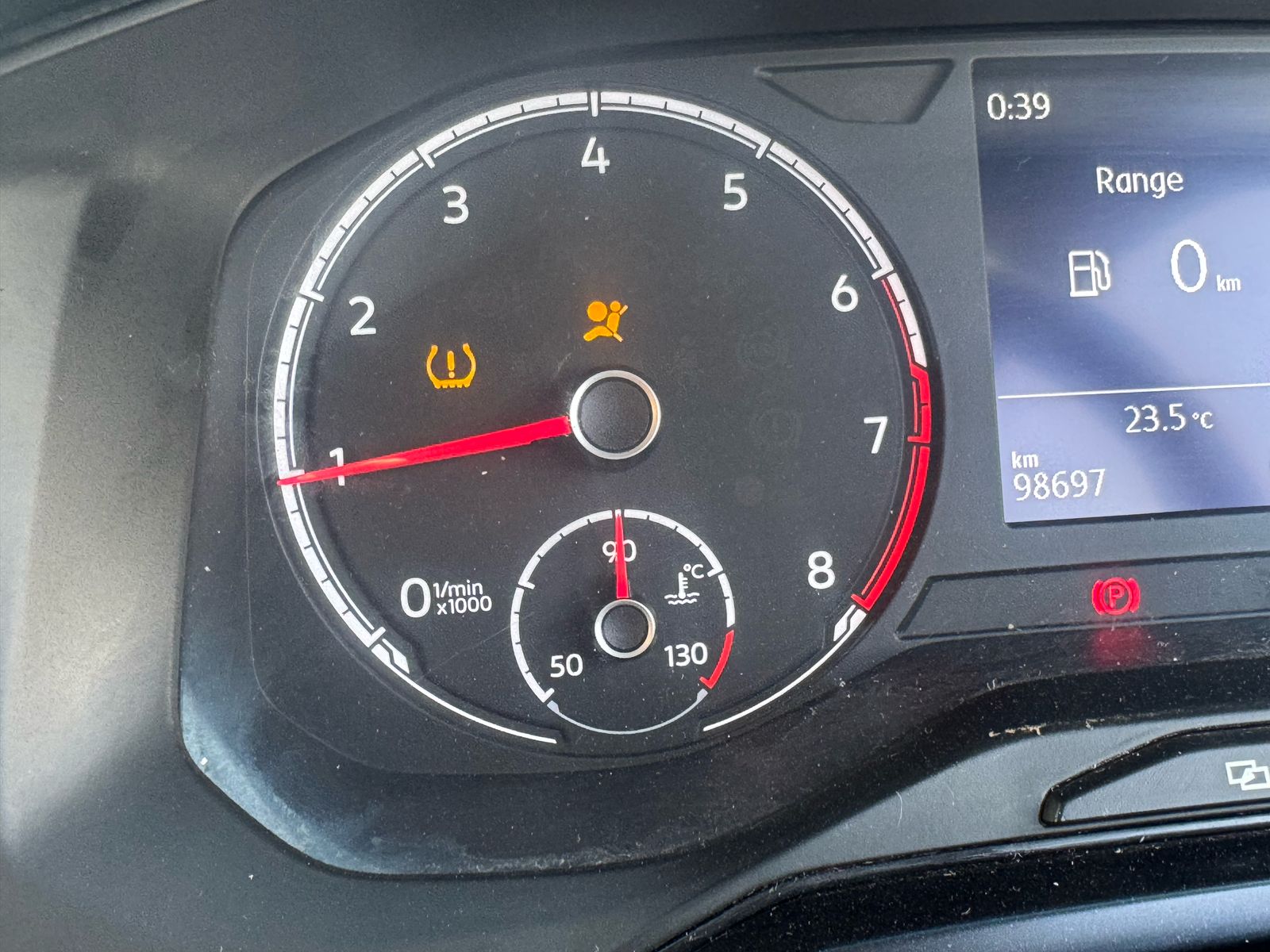

  • 🛑 AirBag Light

🔧 Parts Waiting to Be Assembled

  • -

⚠️ Additional Parts Broken

  • -

🕒 Awaiting Body Parts

  • -
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
